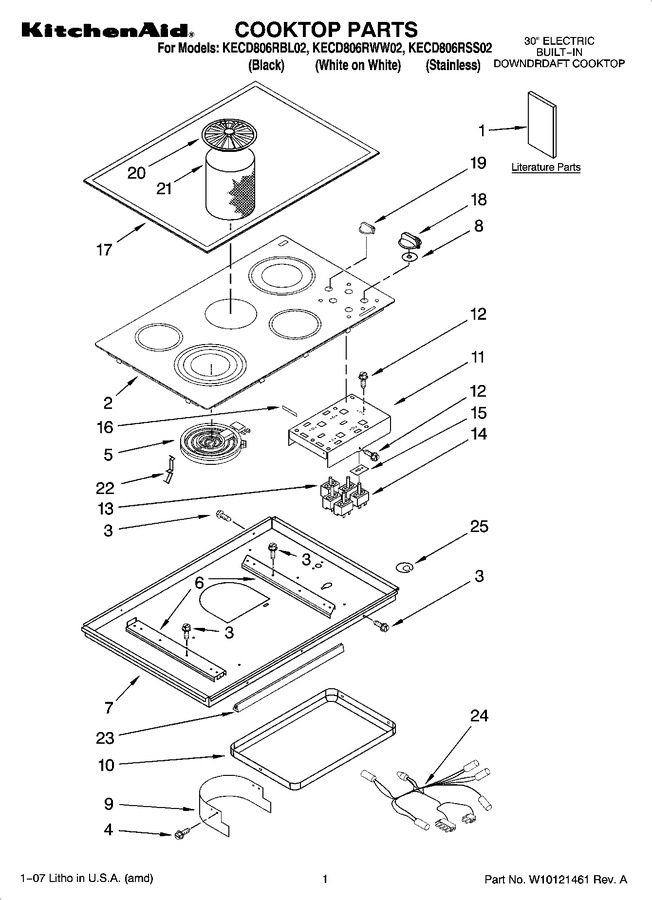

01 - Cooktop Parts
02 - Blower Unit Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286240 | Installation Instructions |
|
- | |||||
| 1 | 8286427 | Wiring Diagram |
|
- | |||||
| 1 | 8286609 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | W10048810 | Cooktop, Glass (black) |
|
- | |||||
| 2 | W10048820 | Cooktop, Glass (white) |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 5 | 8285937 | Element, Surface (rr 1000/2000w) |
|
$ 141.19 | |||||
| 5 | W10823711 | Element, Surface (lr 1200w) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 5 | 8285846 | Element, Surface (lf 900/1800/2500w) |
|
$ 175.07 | |||||
| 5 | W10823699 | Element, Surface (rf 1500w) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 6 | 8286054 | Rail, Element (left) |
|
- | |||||
| 6 | 8285933 | Rail, Element (right) |
|
- | |||||
| 7 | 8285809 | Box, Burner |
|
- | |||||
| 8 | 8285469 | Seal, Infinite Switch (4) |
|
$ 45.00 | |||||
| 9 | 8285934 | Shield, Vent |
|
- | |||||
| 10 | 3190656 | Drip Bowl |
|
- | |||||
| 11 | 4455354 | Plate, Switch Mounting |
|
- | |||||
| 12 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 13 | WP4456836 | Switch, Speed Control (Replaces: 4456836) |
|
Immediately | $ 158.17 | ||||
| 14 | WP4456027 | Switch, Infinite (rr) (Replaces: 4456027) |
|
$ 138.70 | |||||
| 14 | WP3191049 | Switch, Infinite (lr - Rf) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 14 | WP8286070 | Switch, Infinite (lf) (Replaces: 8286070) |
|
Immediately | $ 144.91 | ||||
| 15 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 16 | W10491984 | Seal, Limiter (4) (Replaces: 3192439) |
|
$ 10.33 | |||||
| 17 | 8285710 | Frame, Cooktop (stainless Only) |
|
- | |||||
| 18 | 8286096WH | Knob, Control (white) |
|
- | |||||
| 18 | 8286096CM | Knob, Control (cashmere Metalic) |
|
$ 44.71 | |||||
| 18 | WP8286096BL | Knob, Control (black) (Replaces: 8286096BL) |
|
$ 25.33 | |||||
| 19 | 8286097WH | Knob, Blower Switch (white) |
|
- | |||||
| 19 | 8286097CM | Knob, Blower Switch (cashmere Metalic) |
|
- | |||||
| 19 | WP8286097BL | Knob, Blower Switch (black) (Replaces: 8286097BL) |
|
$ 25.92 | |||||
| 20 | 8285875 | Grille, Air (black) |
|
$ 113.25 | |||||
| 20 | 8285826 | Grille, Air (white) |
|
$ 108.01 | |||||
| 20 | 8285874 | Grille, Air (cashmere Metalic) |
|
- | |||||
| 21 | 3192530 | Filter, Grease |
|
$ 56.78 | |||||
| 22 | 9759094 | Spring, Locator |
|
$ 6.34 | |||||
| 23 | 3193032 | Gasket, Vent Shield |
|
- | |||||
| 24 | 8286055 | Light, Hot Surface Indicator |
|
$ 81.82 | |||||
| 25 | 3193094 | Plate, Cover |
|
- |
