View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

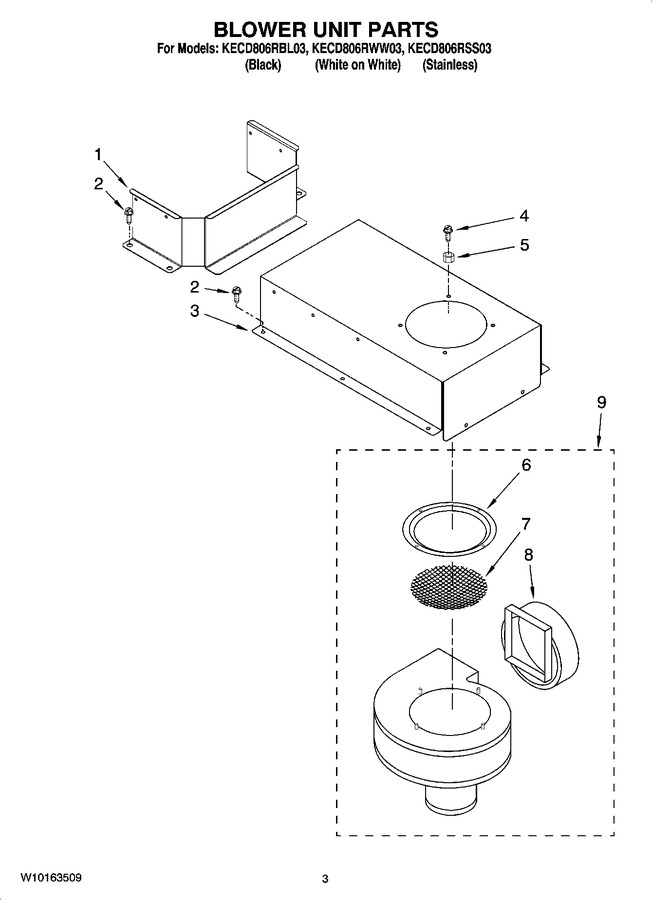

02 - Blower Unit Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10140530 | Bracket, Vent Shield |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 3 | 3192403 | Bracket, Blower |
|
- | |||||
| 4 | WP308685 | Screw (4) (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 5 | WP488130 | Nut (4) (Replaces: 488130) |
|
$ 6.27 | |||||
| 6 | 9760484 | Ring, Inlet |
|
- | |||||
| 7 | 9760485 | Screen, Inlet |
|
- | |||||
| 8 | 9760483 | Adapter, Vent |
|
- | |||||
| 9 | W10109930 | Blower Motor Assembly,(includes Fan Assembly) |
|
$ 788.72 | |||||
| 9 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 9 | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | ||||
| 9 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 9760671 | Strain Relief |
|
- | ||||||
| 8286423 | Conduit, Downdraft |
|
- | ||||||
| WP3400015 | Screw (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 8286419 | Harness, Wire (ceran Downdraft) |
|
- | ||||||
| 4456859 | Harness, Wire (blower/switch) |
|
- | ||||||
| 4456028 | Harness, Jumper |
|
$ 22.62 | ||||||
| WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 |
