SELECT A DIAGRAM

01 - Chassis & Blower-triac Assembly Parts


02 - Chassis Assembly Parts


03 - Chassis Assembly Parts


04 - Chassis Assembly Parts


05 - Chassis Assembly Parts


06 - Chassis Assembly Parts


07 - Chassis Assembly Parts


08 - Miscellaeous Information

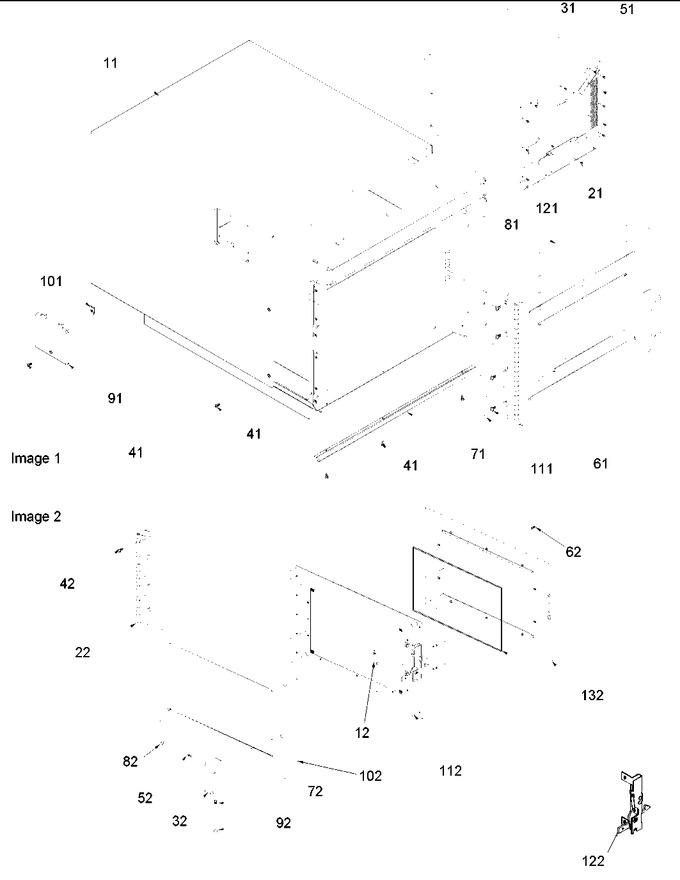

09 - Outercase & Door Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10908901Q		Wrapper-oc (ss)		Appelez-nous	-
12	C8893502		Spring, Door Latch		Appelez-nous	-
22	12003801		Hinge, Door		Appelez-nous	-
32	10822301		Handle, Door		Appelez-nous	-
51	10827218		Assy, Access Pnl		Appelez-nous	-
52	5051032202		Set Screw No.10 X .25		Appelez-nous	-
71	10909001		Trim-oc (brushed)		Appelez-nous	-
72	M0208342		Screw, Set		Appelez-nous	-
81	10432501		Menu Panel		Appelez-nous	-
82	12360701		Plug-hole (blk)		Appelez-nous	-
91	10785602		Cover Light (ss)		Appelez-nous	-
92	M0310305		Plug, Button (wht)		Appelez-nous	-
101	M0288213		Clip		Appelez-nous	-
102	R0156920		Outer Door/lens Retainer Assy		Appelez-nous	-
111	A3263904		Gasket		Appelez-nous	-
112	R0156921		Inner Door & Glass Assy		Appelez-nous	-
121	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
122	12002757		Latch Kit   (Replaces: R0000282)				$ 116.60
132	D7784901		Inner Door/glass Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
