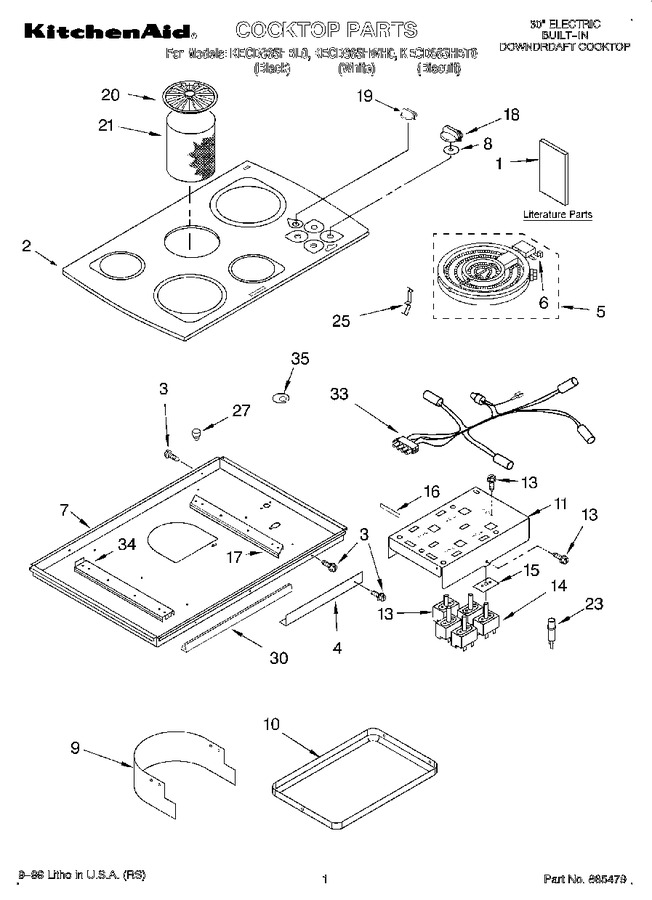

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3192911 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3192515 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3192516 | Literature Parts (installation Instructions) |
|
- | |||||
| 2 | 3192390 | Cooktop, Glass & Bracket Assembly (honeycomb) |
|
- | |||||
| 2 | 3192395 | Cooktop, Glass & Bracket Assembly (black) |
|
- | |||||
| 2 | 3192389 | Cooktop, Glass & Bracket Assembly (white) |
|
- | |||||
| 3 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | 3192408 | Bracket, Support |
|
- | |||||
| 5 | 3191981 | Element, Surface (r.f. (1500w)) |
|
- | |||||
| 5 | 3191984 | Element, Surface (l.r. (1200w)) |
|
- | |||||
| 5 | W10823692 | Element, Surface (l.f. (1000/2400w)) (Replaces: 3191723) |
|
Immediately | $ 204.83 | ||||
| 5 | W10823693 | Element, Surface (r.r. (1800w)) (Replaces: 3191982) |
|
Immediately | $ 205.87 | ||||
| 6 | 3191989 | Limiter (r.f. (1500w)) |
|
- | |||||
| 6 | 3191990 | Limiter (l.r. (1200w)) |
|
- | |||||
| 6 | 3191966 | Limiter (l.f. (1000/2400w)) |
|
- | |||||
| 6 | 3191988 | Limiter (r.r. (1800w)) |
|
- | |||||
| 7 | 3193011 | Box, Burner |
|
- | |||||
| 8 | 3183956 | Seal, Switch |
|
$ 41.81 | |||||
| 9 | 3192401 | Shield, Vent |
|
- | |||||
| 10 | 3190656 | Drip Bowl, Grease |
|
- | |||||
| 11 | 3192405 | Bracket, Mounting Control |
|
- | |||||
| 12 | WP486579 | Screw, 8-32 X 7/32 (Replaces: 311865) |
|
$ 6.61 | |||||
| 13 | 3190639 | Switch, Speed Control |
|
$ 62.56 | |||||
| 14 | WP3191050 | Switch, Infinite (rr) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 14 | WP3191049 | Switch, Infinite (lr - Rf) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 14 | 8203534 | Switch, Infinite (lf) (Replaces: 3188516) |
|
Immediately | $ 151.20 | ||||
| 15 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 82.61 | |||||
| 16 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| 17 | 3192520 | Rail, Element (right Hand) |
|
- | |||||
| 18 | WP9750372FW | Knob, Control (white) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 18 | WP9750372FF | Knob, Control (black) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 18 | WP9750372FC | Knob, Control (biscuit) (Replaces: 9750372FC) |
|
Immediately | $ 6.47 | ||||
| 19 | 3192502 | Knob, Blower Switch (biscuit) |
|
- | |||||
| 19 | 3190723 | Knob, Blower Switch (black) |
|
- | |||||
| 19 | 3190724 | Knob, Blower Switch (white) |
|
- | |||||
| 20 | 3192418 | Grille, Air |
|
- | |||||
| 21 | 3192530 | Filter, Grease |
|
$ 56.78 | |||||
| 23 | 3193012 | Light, Indicator |
|
$ 99.17 | |||||
| 25 | 3191791 | Spring, Locator |
|
- | |||||
| 27 | 3192477 | Bumper, Rubber |
|
- | |||||
| 30 | 3193032 | Gasket, Vent Shield |
|
- | |||||
| 33 | 3191343 | Light, Hot Surface Indicator |
|
- | |||||
| 34 | 3192521 | Rail, Element (left Hand) |
|
- | |||||
| 35 | 3193094 | Plate, Cover |
|
- |
