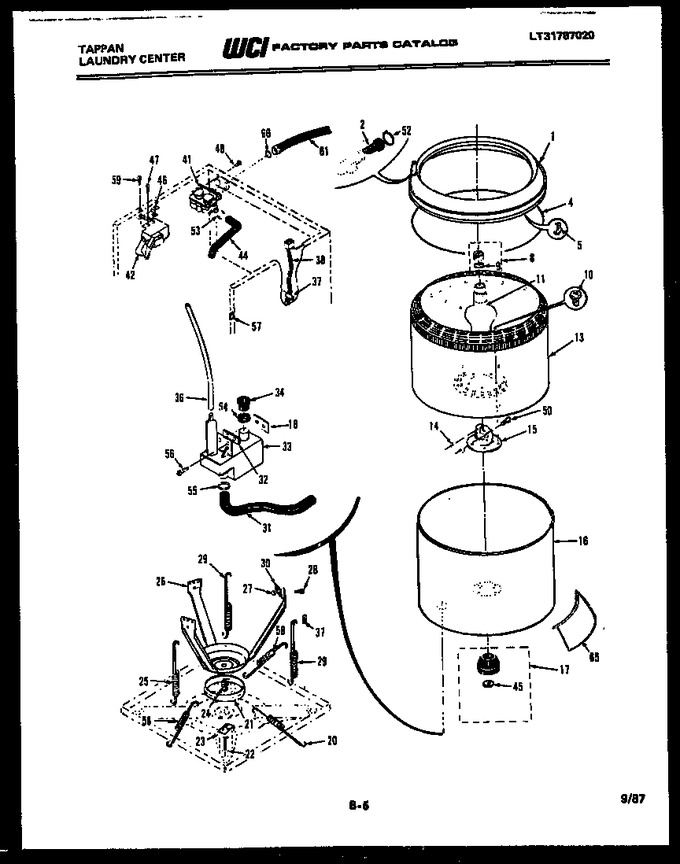

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3161493 | Tub Cover |
|
- | |||||
| 2 | 3161146 | Check Valve |
|
- | |||||
| 4 | 3161121 | Seal-tub Cover |
|
- | |||||
| 5 | 3161199 | Clip (8) |
|
- | |||||
| 8 | 3161122 | Agitator Cap W/ Ref. 9 |
|
- | |||||
| 9 | 3161200 | Washer-cap |
|
- | |||||
| 10 | 3161484 | Screw (5) |
|
- | |||||
| 11 | 3161485 | Agitator |
|
- | |||||
| 13 | 3161486 | Spin Tub |
|
- | |||||
| 14 | 3161125 | Lockplate |
|
- | |||||
| 15 | 3161126 | Trunnion |
|
- | |||||
| 16 | 3161127 | Splash Tub |
|
- | |||||
| 17 | 3161464 | Bearing Hsg Assy |
|
- | |||||
| 18 | 3161283 | Speednut |
|
- | |||||
| 20 | 3161129 | Spring-horz (long) |
|
- | |||||
| 21 | 3161130 | Snubber Ring Assy |
|
- | |||||
| 22 | 3161284 | Bolt-shipping |
|
- | |||||
| 23 | 3161202 | Block-shipping |
|
- | |||||
| 24 | 3161203 | Nut-expansion |
|
- | |||||
| 25 | 3161131 | Spring-vert-short |
|
- | |||||
| 26 | 3161132 | Leg & Dome Assy |
|
- | |||||
| 27 | 3161204 | Nut (6) |
|
- | |||||
| 28 | 3161205 | Screw (6) |
|
- | |||||
| 29 | 3161133 | Spring-vert-long (2) |
|
- | |||||
| 30 | 3161134 | Plate (3) |
|
- | |||||
| 31 | 3161135 | Hose-pump/trap |
|
- | |||||
| 32 | 3161285 | Shim |
|
- | |||||
| 33 | 3161136 | Button Trap |
|
- | |||||
| 34 | 3161286 | Grommet |
|
- | |||||
| 36 | 3161137 | Pressure Tube |
|
- | |||||
| 37 | 3161287 | Clip-harn/cab |
|
- | |||||
| 38 | 3161138 | Harn-lwr-wshr Mtr |
|
- | |||||
| 41 | 3161140 | Water Valve |
|
- | |||||
| 42 | 3161141 | Lid Lock |
|
- | |||||
| 44 | 3161142 | Hose |
|
- | |||||
| 45 | 3161289 | Thrust Washer |
|
- | |||||
| 46 | 3161143 | Brkt-lid Lock |
|
- | |||||
| 47 | 3161242 | Screw (2) |
|
- | |||||
| 48 | 3161290 | Screw (2) |
|
- | |||||
| 50 | 3161487 | Screw (2) |
|
- | |||||
| 52 | 3161206 | Clamp |
|
- | |||||
| 53 | 3161207 | Clamp |
|
- | |||||
| 54 | 3161208 | Clamp |
|
- | |||||
| 55 | 3161293 | Clamp |
|
- | |||||
| 56 | 3161274 | Screw (2) |
|
- | |||||
| 57 | 3161287 | Clip |
|
- | |||||
| 58 | 3161209 | Spring-horz-short (2) |
|
- | |||||
| 59 | 3161238 | Screw (2) |
|
- | |||||
| 61 | 3161144 | Hose-inlet-hot |
|
- | |||||
| 65 | 3161295 | Mtr Shield |
|
- | |||||
| 66 | 3161296 | Washer-hose (4) |
|
- | |||||
| *61606 | 3161147 | Adhesive |
|
- | |||||
| *61607 | 3161298 | Clip-pres Tube-short |
|
- | |||||
| *61607 | 3161148 | Primer Adhesive |
|
- | |||||
| *61608 | 3161299 | Clip-press Tube-long |
|
- | |||||
| 37A | 3161288 | Clip-harn/leg |
|
- | |||||
| 61A | 3161145 | Hose-inlet-cold |
|
- |
