Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 R0130110 Touch Panel(top) Special Order $ 239.25

1 M0231717 Screw, Tf Appelez-nous -
2 12502401 Board,display Xxx Appelez-nous -
2 M0234114 Screw Appelez-nous -
3 R0130109 Touch Panel(side) Special Order $ 306.74

3 M0231717 Screw, Tf Appelez-nous -
4 M0216517 Screw Appelez-nous -
4 12002636 Switch, Interlock Kit Special Order $ 116.19

5 12164101 Grommet-rubber Appelez-nous -
6 M0229916 Screw T.c Appelez-nous -
6 B5684124 Cutout-thermal Magnetron Appelez-nous -
7 10489402 Magnetron-t Appelez-nous -
8 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

8 WP13091701 Rectifier   (Replaces: B8383102) Special Order $ 31.71

9 59001128 Bushing, Snap Appelez-nous -
10 59001158 Capacitor-.55 Appelez-nous -
10 A4055405 Strap, Capacitor Appelez-nous -
10 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

11 59001626 Transformer-hv Special Order $ 259.18

12 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

13 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.00

14 A3030301 Gasket (inch) Appelez-nous -
15 B5667304 Wire Clip Appelez-nous -
16 10172901Q Snubber Assembly Appelez-nous -
17 59001122 Net-board,hv Amana Prog-mc23 Appelez-nous -
18 M0590602 Support P-c Bd A Appelez-nous -
19 M0325401 Bushing,terminal Appelez-nous -
20 B5795306 Thermal Cutout Appelez-nous -
20 WP488234 Screw   (Replaces: M0234422) Special Order $ 6.07

21 M0308801 Cap, Protective-threaded (red) Appelez-nous -
22 M0231617 Screw,tf Appelez-nous -
23 10847601 Plate, Partition Appelez-nous -
23 WPW10001160 Screw   (Replaces: M0200316) Special Order $ 8.86

24 12QBP0508 Kit, Triac Assy   (Replaces: R0157373) Special Order $ 27.14

24 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

25 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

25 59001630 Transformer-auto Special Order $ 26.20

26 M0322202 Tie Wire Appelez-nous -
27 12492202 Relay Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

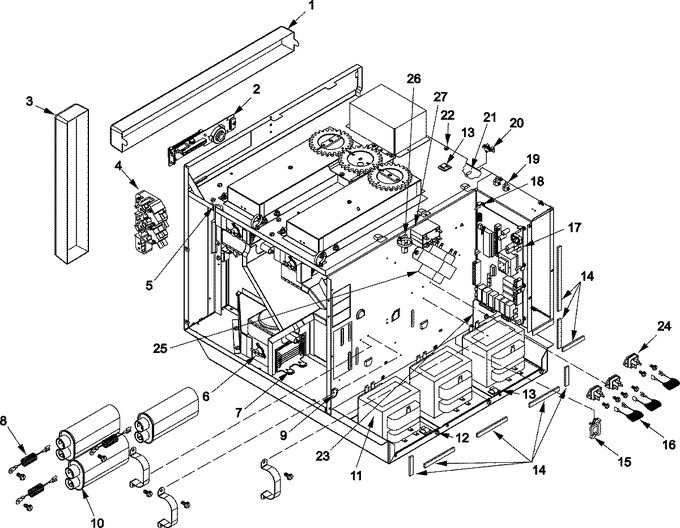

Diagram for MC23MPTW2 (BOM: P1332807M)
