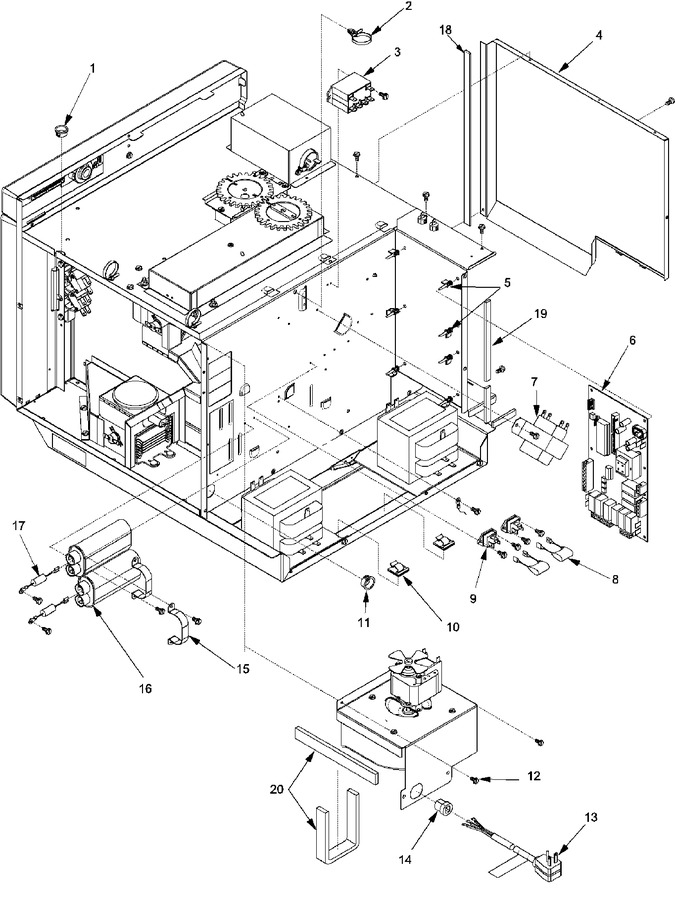

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	A3293505		Bushing-snap		Appelez-nous	-
002	M0322202		Tie Wire		Appelez-nous	-
003	12492202		Relay		Appelez-nous	-
004	10781901		Duct, Exhaust		Appelez-nous	-
004	M0231617		Screw,tf		Appelez-nous	-
005	M0590602		Support P-c Bd A		Appelez-nous	-
006	59001122		Net-board,hv Amana Prog-mc23		Appelez-nous	-
007	C8901509		Transformer-auto		Appelez-nous	-
007	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
008	10172901Q		Snubber Assembly		Appelez-nous	-
009	D7681501		Triac				$ 44.05
009	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
010	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
011	59001128		Bushing, Snap		Appelez-nous	-
012	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
013	R0000165		Cord Kit (mpt)		Appelez-nous	-
014	M0370007		Strain Relief		Appelez-nous	-
015	A4055405		Strap, Capacitor		Appelez-nous	-
015	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
016	D8547928		Capacitor-.74		Appelez-nous	-
017	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
017	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
018	A3030301		Gasket (inch)		Appelez-nous	-
019	A3030301		Gasket (inch)		Appelez-nous	-
020	A3030303		Gasket (per Foot)		Appelez-nous	-
