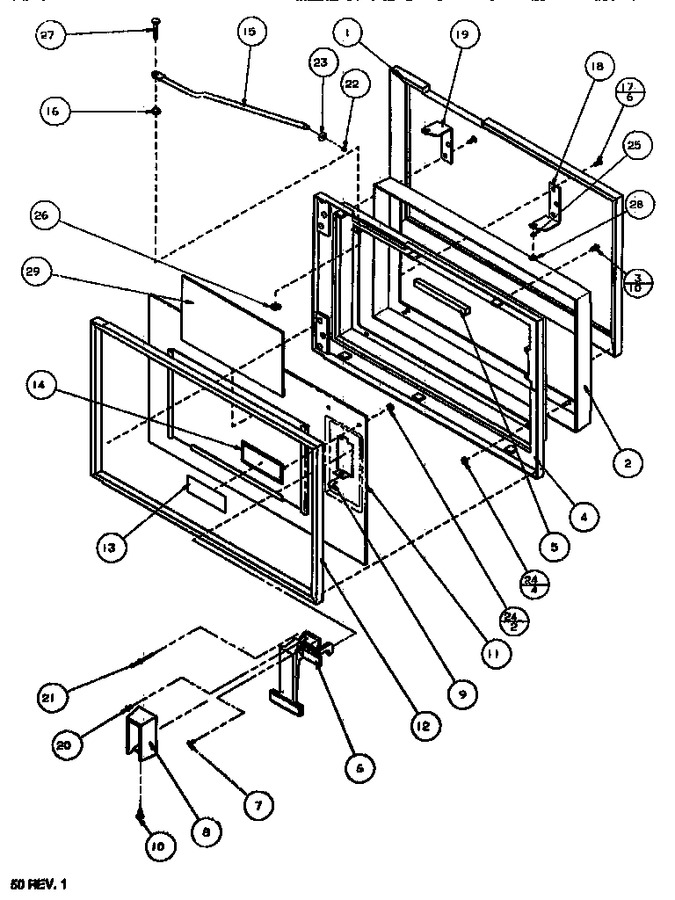

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7670501		Gasket, Door		Appelez-nous	-
2	D7143803		Door-inner		Appelez-nous	-
3	M0253418		Screw		Appelez-nous	-
4	10122401		Ring, Inner Door		Appelez-nous	-
5	A4591128		Gasket		Appelez-nous	-
6	D7178504		Door Latch Assembly		Appelez-nous	-
7	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
8	B5671901		Bezel-door Handle		Appelez-nous	-
9	M0288102		Speed Nut		Appelez-nous	-
10	M0230017		Screw,tc		Appelez-nous	-
11	10429401		Door Panel W/menu Holder		Appelez-nous	-
12	D7667702		Ring, Outer Door		Appelez-nous	-
13	C8904615		Ins Med (cfc 113 Label)		Appelez-nous	-
14	C3668803		Escutcheon		Appelez-nous	-
15	B5748702		Arm, Dr Stop K		Appelez-nous	-
16	A3185001		Bushing-door Arm		Appelez-nous	-
17	Y00000000		See Note Screw-tc., Door Hinges -- (incl. In Item 18)		Appelez-nous	-
18	R0156889		Assy, Door Hinge		Appelez-nous	-
19	Y00000000		See Note Hinge-door Top -- (incl. In Item 18)		Appelez-nous	-
20	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
21	B5642906		Rivet, Pop (wht)		Appelez-nous	-
22	WP488130		Nut   (Replaces: M0282007)				$ 6.27
23	M0270501		Washer		Appelez-nous	-
24	M0288801		Nut K		Appelez-nous	-
25	Y00000000		See Note Bushing-hinge -- (incl. In Item 18)		Appelez-nous	-
26	M0118905		Clip Push On		Appelez-nous	-
27	B8372701		Pin Mtg		Appelez-nous	-
28	Y00000000		See Note Washer-non Metal -- (incl. In Item 18)		Appelez-nous	-
29	10432501		Menu Panel		Appelez-nous	-
NI	M0275154		Tape Per Roll		Appelez-nous	-
