Diagram for 02 - Cabinet Parts
02 - Cabinet Parts

Diagram for 03 - Tub Detail
03 - Tub Detail

Diagram for 04 - Transmission Parts
04 - Transmission Parts

Diagram for 05 - Console And Control Parts
05 - Console And Control Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
2 131052100 Screw Appelez-nous -
3 5303271764 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 131103400 Switch - Pressure Appelez-nous -
6 131168200 Screw In-Stock Immediately $ 14.18

12 5303291344 End Cap-lh Special Order $ 59.59

13 5303291352 End Cap-rh Special Order $ 56.49

14 5303289526 Screw Appelez-nous -
15 5303295581 Pointer Appelez-nous -
16 5308014337 Knob - Timer Special Order $ 32.57

18 5303301296 Panel - Control Appelez-nous -
19 131157806 Bracket - Control Mtg Appelez-nous -
20 131166000 Harness Appelez-nous -
24 131081000 Knob-rotary Appelez-nous -
25 5308015493 Spacer-timer Shaft Special Order $ 14.36

26 5300503065 Nut Special Order $ 6.09

20A 08001689 Screw Appelez-nous -
20B 5303281035 Screw-grounding Cabinet (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

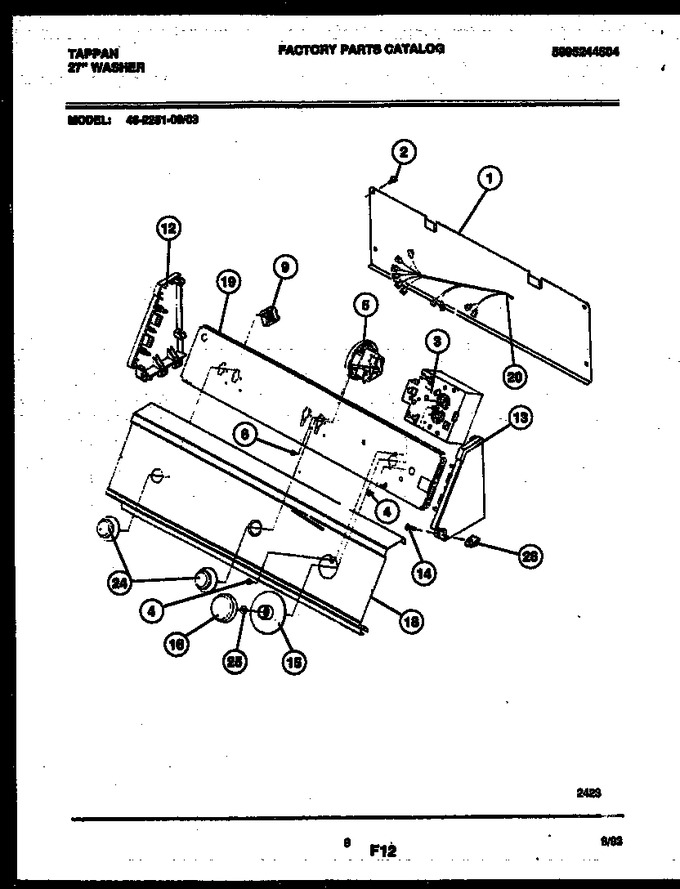

Diagram for 46-2251-23-03
