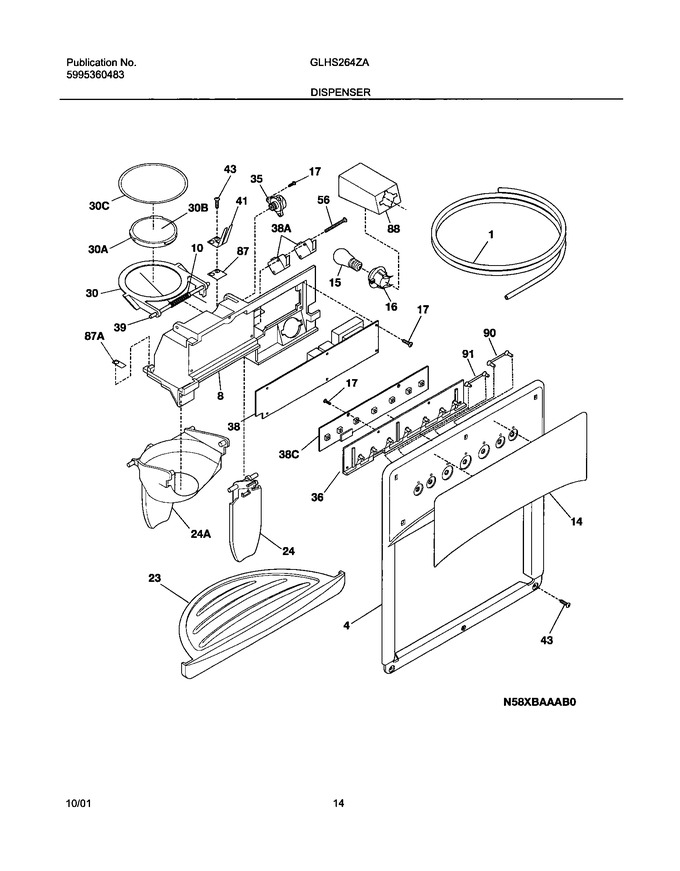

13 - Dispenser


15 - Ice Container


17 - Icemaker


19 - Controls


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water Inlet   (Replaces: 218976405)			Immediately	$ 60.25
4	241678703		Cover-module,white   (Replaces: 5304421822)			Immediately	$ 75.02
8	5304422030		Module-dispenser		Appelez-nous	-
10	241688901		Spring-torsion   (Replaces: 5304421626)			Immediately	$ 21.27
14	240323961		Label-module Cover,white   (Replaces: 240323911)				$ 3.55
15	5304421616		Light Bulb/lamp				$ 32.45
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	241679801		Screw   (Replaces: 5304421619)				$ 14.18
23	241649007		Drip Tray,white   (Replaces: 240323601)				$ 29.58
24	241682001		Actuator-water,white   (Replaces: 5304421825)			Immediately	$ 57.41
30	241688401		Door Assy-ice Chute   (Replaces: 5304421628)				$ 49.62
35	241689301		Damper-rotary   (Replaces: 5304421620)				$ 70.52
36	5304421824		Carrier		Appelez-nous	-
38	5304421827		Power Board		Appelez-nous	-
39	241688801		Pin-hinge   (Replaces: 5304421627)				$ 43.24
41	241689001		Spring-actuator   (Replaces: 5304421829)				$ 21.97
43	215296300		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head   (Replaces: 5304421830)				$ 13.46
87	241688302		Bearing Plate   (Replaces: 5304421622)				$ 19.85
88	5304421615		Shield-light		Appelez-nous	-
90	5304421831		Light Pipe				$ 22.52
91	5304421850		Light Pipe,short		Appelez-nous	-
24A	241681901		Actuator-ice,white   (Replaces: 5304421826)				$ 80.80
30A	241688501		Door Center   (Replaces: 5304421624)				$ 52.97
30B	241688601		Insulation-door   (Replaces: 5304421625)				$ 63.17
30C	241688701		Door Seal   (Replaces: 5304421629)				$ 40.46
38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 5304421617)			Immediately	$ 8.60
38C	5304422029		Board-control		Appelez-nous	-
87A	241688301		Bearing Plate   (Replaces: 5304421621)				$ 19.85
NI	5303918256		Dispenser Heater Kit				$ 474.16
NI	218976903		Tube-water Inlet,inlet Valve ,to Filter				$ 70.16
NI	5304453707		Screw-no.8-18 X 1/2,no.6 Hd Plask   (Replaces: 240363401)			Immediately	$ 15.92
NI	218976907		Tube-water Inlet,valve To Door				$ 67.73
NI	218976901		Tube-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 81.50
