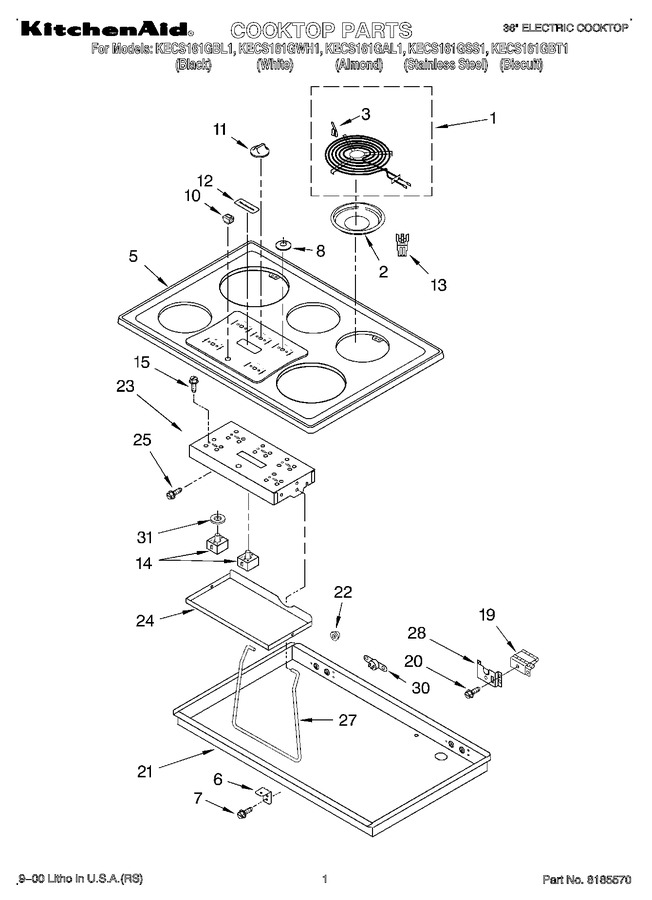

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192224 | Surface Element (2600w Rf) |
|
- | |||||
| 1 | WP3191455 | Surface Element (1200w Lf-rr-cr) (Replaces: 3191455) |
|
$ 133.85 | |||||
| 1 | WP3191454 | Surface Element (2100w Lr) (Replaces: 3191454) |
|
$ 163.63 | |||||
| 2 | W10196405RW | Burner Bowl (8`` (2)) (Replaces: 3195209) |
|
Immediately | $ 18.70 | ||||
| 2 | WPW10196406 | Burner Bowl (6`` (3)) (Replaces: 3195208) |
|
Immediately | $ 12.05 | ||||
| 3 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 6.96 | ||||
| 5 | 3191179 | Cooktop (stainless Steel) |
|
- | |||||
| 5 | 3192463 | Cooktop (biscuit) |
|
- | |||||
| 5 | 3191176 | Cooktop (black) |
|
- | |||||
| 5 | 3191177 | Cooktop (white) |
|
- | |||||
| 5 | 3191178 | Cooktop (almond) |
|
- | |||||
| 6 | 4454839 | Bracket, Installation |
|
- | |||||
| 7 | 3400017 | Screw, 10-24 X 2.5 |
|
- | |||||
| 8 | 3192095 | Collar, Knob (white) |
|
- | |||||
| 8 | 3192096 | Collar, Knob (almond) |
|
- | |||||
| 8 | 3192461 | Collar, Knob (biscuit) |
|
- | |||||
| 8 | 3192094 | Collar, Knob (black) |
|
- | |||||
| 10 | WP4456181 | Light, Indicator (Replaces: 3191491) |
|
$ 95.36 | |||||
| 11 | WP9750372FF | Knob, Control (4) (black) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 11 | 9750372FT | Knob, Control (4) (almond) |
|
- | |||||
| 11 | WP9750372FW | Knob, Control (4) (white) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 11 | WP9750372FC | Knob, Control (4) (biscuit) (Replaces: 9750372FC) |
|
Immediately | $ 6.47 | ||||
| 12 | 3191514 | Nameplate (black) |
|
$ 53.29 | |||||
| 12 | 3191920 | Nameplate (biscuit) |
|
- | |||||
| 12 | 3191517 | Nameplate (almond) |
|
- | |||||
| 12 | 3191516 | Nameplate (white) |
|
- | |||||
| 13 | WP9760411 | Clip, Receptacle (Replaces: 3195210) |
|
$ 7.34 | |||||
| 14 | WP3191471 | Switch, Infinite (1200/1600w Lf-rr-cr (blue Stem)) (Replaces: 3191471) |
|
$ 170.54 | |||||
| 14 | WP3191472 | Switch, Infinite (1700/2100w Lr (silver Stem)) (Replaces: 3191472) |
|
$ 150.84 | |||||
| 14 | WP3191473 | Switch, Infinite (2200/2600w Rf (red Stem)) (Replaces: 3191473) |
|
$ 144.64 | |||||
| 15 | 3400855 | Screw, 8-32 X 1/4 |
|
- | |||||
| 19 | 3192218 | Hinge (2) |
|
- | |||||
| 20 | W10491985 | Screw, 8-18 X 1/4 (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 21 | 4455455 | Burner Box |
|
- | |||||
| 22 | 1129449 | Bushing, Fiber |
|
- | |||||
| 23 | 4455452 | Bracket, Switch Mounting |
|
- | |||||
| 24 | 4455453 | Cover, Switch Box |
|
- | |||||
| 25 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 27 | 3191518 | Rod, Top Support |
|
- | |||||
| 28 | 3191511 | Bracket, Hinge |
|
- | |||||
| 30 | 3192219 | Tod, Reset |
|
$ 23.52 | |||||
| 31 | 3192329 | Harness, Wire (main Lf-lr) |
|
- | |||||
| 31 | 3191508 | Harness, Pilot Light |
|
- | |||||
| 31 | 1129449 | Bushing |
|
- | |||||
| 31 | 3191548 | Conduit |
|
- | |||||
| 31 | WP3400015 | Ground Screw (Replaces: 3400015) |
|
$ 6.47 | |||||
| 31 | 3184020 | Ground Wire (Replaces: 4454384) |
|
$ 74.50 | |||||
| 31 | 4448664 | Clamp, Conduit |
|
$ 18.35 | |||||
| 31 | W10491985 | Screw, 8-18 X 1/4 (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 31 | 3183956 | Seal, Switch |
|
$ 41.81 | |||||
| 31 | 3191227 | Harness, Wire (main Rr-rf) |
|
- | |||||
| 31 | 3191551 | Harness, Wire (main Center) |
|
- | |||||
| LIT3191638 | Safer Cooking Tips |
|
- | ||||||
| LIT3191538 | Installation Instructions |
|
- | ||||||
| LIT3191536 | Use & Care Guide |
|
- | ||||||
| LIT3192087 | Wiring Diagram |
|
- |
