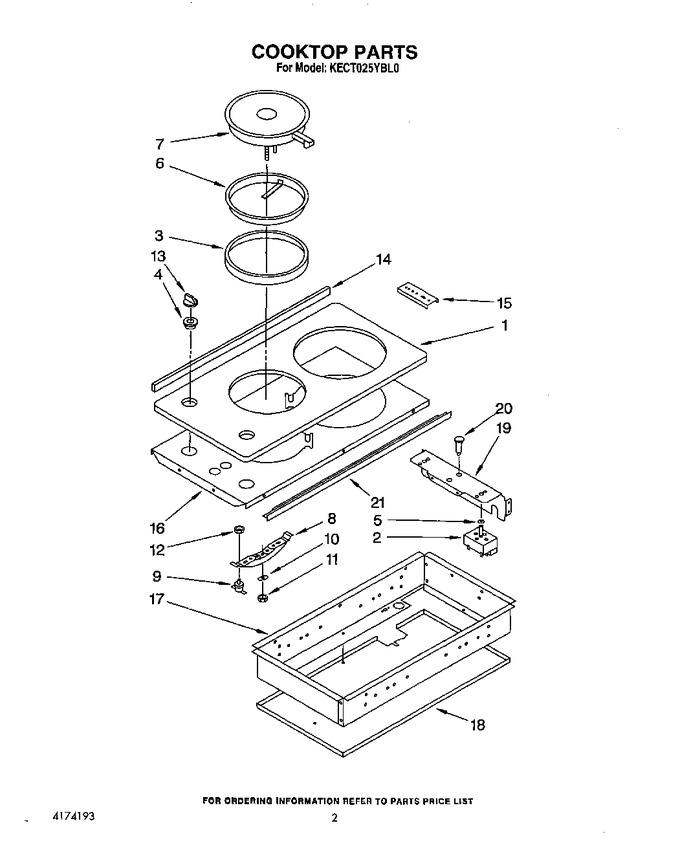

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3182648 | Cooktop, Glass (black) |
|
- | |||||
| 1 | 3182649 | Cooktop, Glass (white) |
|
- | |||||
| 1 | 3182650 | Cooktop, Glass (almond) |
|
- | |||||
| 2 | WP486579 | Switch, Inifinite (screw (4)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 2 | 3148958 | Switch, Inifinite (rear Burner (orange Shaft)) |
|
- | |||||
| 2 | 3148950 | Switch, Inifinite (front Burner (green Shaft)) |
|
$ 28.56 | |||||
| 3 | 3179361 | Seal, Burner (front Burner) |
|
- | |||||
| 3 | 3179362 | Seal, Burner (rear Burner) |
|
- | |||||
| 4 | 3182435 | Seal, Inifinite Switch |
|
- | |||||
| 5 | 309839 | Seal, Switch Shaft (2) |
|
- | |||||
| 6 | 3147187 | Ring, Gasket (front Burner) |
|
- | |||||
| 6 | 3147188 | Ring, Gasket (rear Burner) |
|
- | |||||
| 7 | 3182762 | Element, Solid (rear Burner) |
|
- | |||||
| 7 | 8203517 | Element, Solid (front Burner) (Replaces: 3182761) |
|
$ 205.97 | |||||
| 8 | 3147704 | Bracket, Burner Mounting (rear Burner) |
|
- | |||||
| 8 | 3147703 | Bracket, Burner Mounting (front Burner) |
|
- | |||||
| 9 | 3148397 | Thermostat (2) |
|
- | |||||
| 10 | 3147191 | Spring, Leaf (2) |
|
- | |||||
| 11 | 3147189 | Nut, Metric |
|
- | |||||
| 12 | 3147190 | Nut, Metric |
|
- | |||||
| 13 | 3182572 | Knob, Cooktop (almond) |
|
- | |||||
| 13 | 3182570 | Knob, Cooktop (black) |
|
- | |||||
| 13 | 3182571 | Knob, Cooktop (white) |
|
- | |||||
| 14 | 3179164 | Tape, Foam |
|
- | |||||
| 15 | 3179557 | Screw, 8-32 X 2 1/2 |
|
- | |||||
| 15 | 4167077 | Nut, Tinnerman (2) |
|
- | |||||
| 15 | 8186533 | Bracket, Mounting (Replaces: 3183401) |
|
$ 79.60 | |||||
| 15 | 3179368 | Screw, 8-32 X 1 1/2 |
|
- | |||||
| 15 | 4159461 | Screw, Type Ab |
|
- | |||||
| 16 | 3182723 | Top, Burner Box |
|
- | |||||
| 16 | WP488729 | Screw (8) (Replaces: 304234) |
|
Immediately | $ 7.01 | ||||
| 17 | 3182369 | Side, Burner Box (2) |
|
- | |||||
| 17 | WP488729 | Screw (4) (Replaces: 304234) |
|
Immediately | $ 7.01 | ||||
| 18 | WP488729 | Screw (4) (Replaces: 304234) |
|
Immediately | $ 7.01 | ||||
| 18 | 3182591 | Bottom, Burner Box |
|
- | |||||
| 19 | WP488729 | Screw (4) (Replaces: 304234) |
|
Immediately | $ 7.01 | ||||
| 19 | 3182690 | Bracket, Control Panel |
|
- | |||||
| 19 | 312318 | Screw, |
|
- | |||||
| 20 | 3182716 | Light, Indicator (2) |
|
- | |||||
| 21 | 3182437 | Trim, Extrusion (black) |
|
- | |||||
| 21 | 3182439 | Trim, Extrusion (white) |
|
- | |||||
| 21 | 3182438 | Trim, Extrusion (almond) |
|
- | |||||
| LIT4174193 | Repair Parts List |
|
- | ||||||
| LIT3182047 | Use & Care Guide |
|
- | ||||||
| LIT3182049 | Installation Instructions |
|
- |
