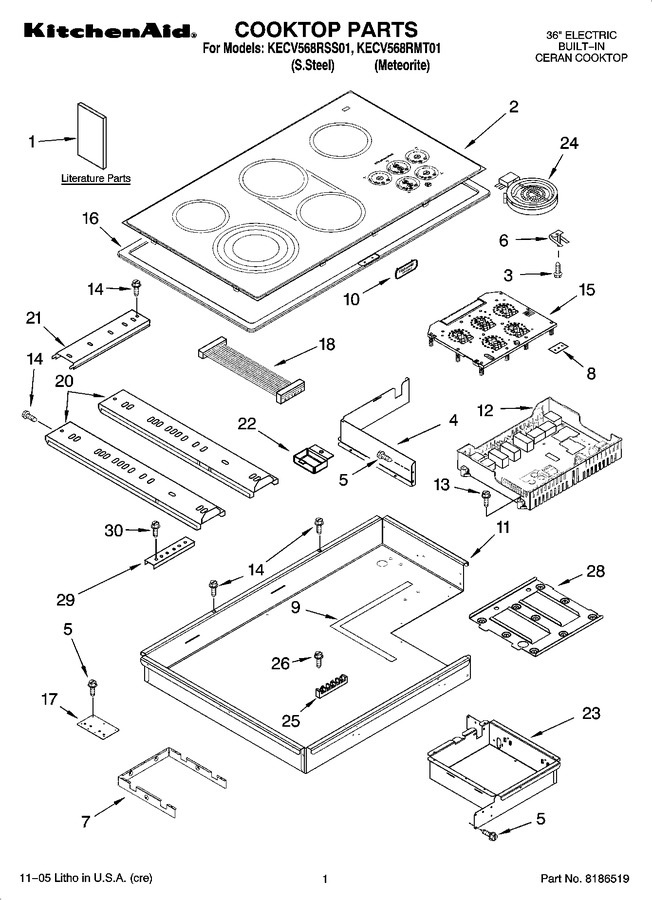

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759133 | Safecooking Tips |
|
- | |||||
| 1 | 8286066 | Installation Instructions |
|
- | |||||
| 1 | 8286064 | Tech Sheet |
|
- | |||||
| 1 | 8286608 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 2 | 8286198 | Cooktop, Glass |
|
- | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 8286578 | Wall, Inside |
|
- | |||||
| 5 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 6 | 9759094 | Spring Locator (10) |
|
$ 6.34 | |||||
| 7 | 8285817 | Shield, Heat |
|
- | |||||
| 8 | W10491984 | Seal, Switch (Replaces: 3192439) |
|
$ 10.33 | |||||
| 9 | 8285242 | Seal, Heat Shield |
|
$ 63.49 | |||||
| 10 | 8531835 | Nameplate |
|
- | |||||
| 11 | 8286555 | Box, Burner |
|
- | |||||
| 12 | 8285919 | Board, Power |
|
- | |||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | WP8285924 | Board, Control (Replaces: 8285924) |
|
$ 374.49 | |||||
| 16 | 8285927 | Frame, Cooktop (meteorite) |
|
- | |||||
| 16 | 8285926 | Frame, Cooktop (s.steel) |
|
- | |||||
| 17 | 8286535 | Bracket, Bottom |
|
$ 41.45 | |||||
| 18 | 8285323 | Cable Ass`y |
|
- | |||||
| 20 | 8286585 | Rail, Element (2) |
|
- | |||||
| 21 | 8286345 | Rail, Element (1) |
|
- | |||||
| 22 | W11819303 | Cover, Harness (Replaces: 8285593) |
|
- | |||||
| 23 | 8286576 | Box, Touch Control |
|
- | |||||
| 24 | 8285849 | Element, Surface (4300w Center) |
|
$ 267.90 | |||||
| 24 | WP4453907 | Element, Surface (1500w Rr) (Replaces: 4453907) |
|
Immediately | $ 256.28 | ||||
| 24 | WP8285230 | Element, Surface (1200w Lr) (Replaces: 8285230) |
|
Immediately | $ 215.70 | ||||
| 24 | 8285847 | Element, Surface (2500/1800/900w Lf) |
|
$ 173.47 | |||||
| 25 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 26 | WP3196163 | Screw, 10-16 X 7/8 (Replaces: 3196163) |
|
$ 6.26 | |||||
| 28 | 4456922 | Support, Module |
|
- | |||||
| 29 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 30 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 8286382 | Clip, Harness |
|
- | ||||||
| 8286381 | Harness, Main |
|
$ 168.15 | ||||||
| 8537055 | Cleaner, S.steel |
|
- | ||||||
| 4456147 | Cleaner, Glass |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200 C Fe02313 Bushing |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 3192408 | Bracket, Support (2) |
|
- | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| 8286444 | Conduit |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 8285439 | Seal, Foam (36``) |
|
$ 57.27 |
