SELECT A DIAGRAM

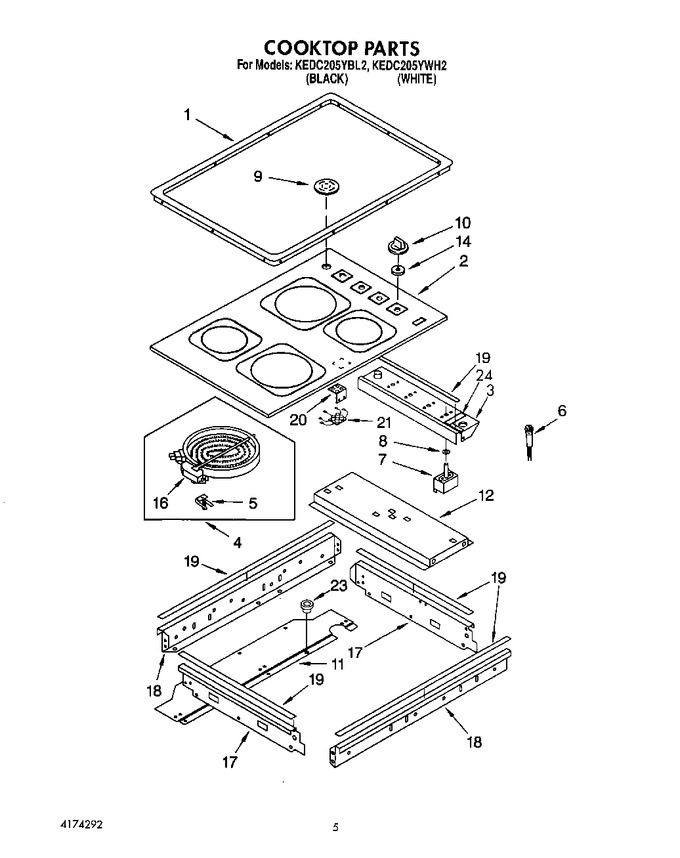

01 - Oven Parts


02 - Control Panel


03 - Door Parts


04 - Cooktop, Lit/optional


05 - Wiring Harness


06 - Utility Drawer And Rail


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3150306		Trim Ring, Cooktop (white)		Appelez-nous	-
1	WP308685		Trim Ring, Cooktop (screw (14))   (Replaces: 3182346)			Immediately	$ 7.08
1	3150305		Trim Ring, Cooktop (black)		Appelez-nous	-
2	3185581		Cooktop, Glass (white)		Appelez-nous	-
2	3185580		Cooktop, Glass (black)		Appelez-nous	-
3	3150338		Bracket, Switch Mounting		Appelez-nous	-
3	3185617		Seal, Foam (2)		Appelez-nous	-
4	3183584		Element, Surface (1400w Left Rear)		Appelez-nous	-
4	3183632		Element, Surface (2400w Left Front)		Appelez-nous	-
4	3183201		Element, Surface (2100w Right Rear)		Appelez-nous	-
4	3183200		Element, Surface (1700w Right Front)		Appelez-nous	-
5	WP486754		Screw (8)   (Replaces: 246119)				$ 6.75
5	3149191		Spring Locator (8)				$ 9.45
6	3149978		Light, Indicator		Appelez-nous	-
7	3148958		Switch, Infinite (use W/2400w Left Front Burner)		Appelez-nous	-
7	3148949		Switch, Infinite (use W/1400w Left Rear Burner & W/1700w Right Front Burner)				$ 67.77
7	W10900107		Switch, Infinite (use W/2100w Right Rear Burner)   (Replaces: 3148961)			Immediately	$ 51.87
8	309839		Seal, Switch Cover		Appelez-nous	-
9	3182497		Cover, Vent (white)		Appelez-nous	-
9	3182496		Cover, Vent (black)		Appelez-nous	-
10	3150096		Knob, Control (4) (white)		Appelez-nous	-
10	3150100		Knob, Control (4) (black)				$ 21.50
11	3147165		Cover, Top Rear		Appelez-nous	-
11	WP488729		Screw (3)   (Replaces: 3148107)			Immediately	$ 7.01
12	3150316		Support, Element		Appelez-nous	-
12	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
14	3182435		Seal, Switch (4)		Appelez-nous	-
16	3149124		Switch, Limit (use W/3183632 Element)		Appelez-nous	-
16	3149123		Switch, Limit (use W/3183201 Element)		Appelez-nous	-
16	3183972		Switch, Limit (use W/3183200 Element)		Appelez-nous	-
16	3149129		Switch, Limit (use W/3183584 Element)		Appelez-nous	-
17	3150323		Rail, Side (right Hand)		Appelez-nous	-
17	3150324		Rail, Side (left Hand)		Appelez-nous	-
18	3181646		Clip, ``u Nut``		Appelez-nous	-
18	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
18	3183380		Rail, Front & Rear		Appelez-nous	-
19	3185590		Seal, Silicone (large (2))		Appelez-nous	-
19	3185589		Seal, Silicone (small (3))		Appelez-nous	-
20	3150321		Bracket, Hot Surface Indicator		Appelez-nous	-
20	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
21	3150304		Lamp, Hot Surface Indicator		Appelez-nous	-
23	258109		Bushing		Appelez-nous	-
24	3185617		Seal, Cooktop		Appelez-nous	-
	LIT3185729		Use & Care Guide		Appelez-nous	-
	LIT3183603		Tech Sheet		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	WA906B		Scraper, Window   (Replaces: 3183488)			Immediately	$ 4.86
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	LIT4174292		Repair Parts List		Appelez-nous	-
	LIT3184873		Installation Instructions		Appelez-nous	-
	814128		Anti-tip Kit		Appelez-nous	-
	3185260		Mounting Hardware		Appelez-nous	-
	3183639		White		Appelez-nous	-
	3183638		Conversion Kit (black)		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	CERAMABRYTE		Cleaner, Glass Conversion Kit   (Replaces: 3184477)			Immediately	$ 9.95
	261582		Grease		Appelez-nous	-
	8212471		Touch-up   (Replaces: 242756)			Immediately	$ 74.76
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
