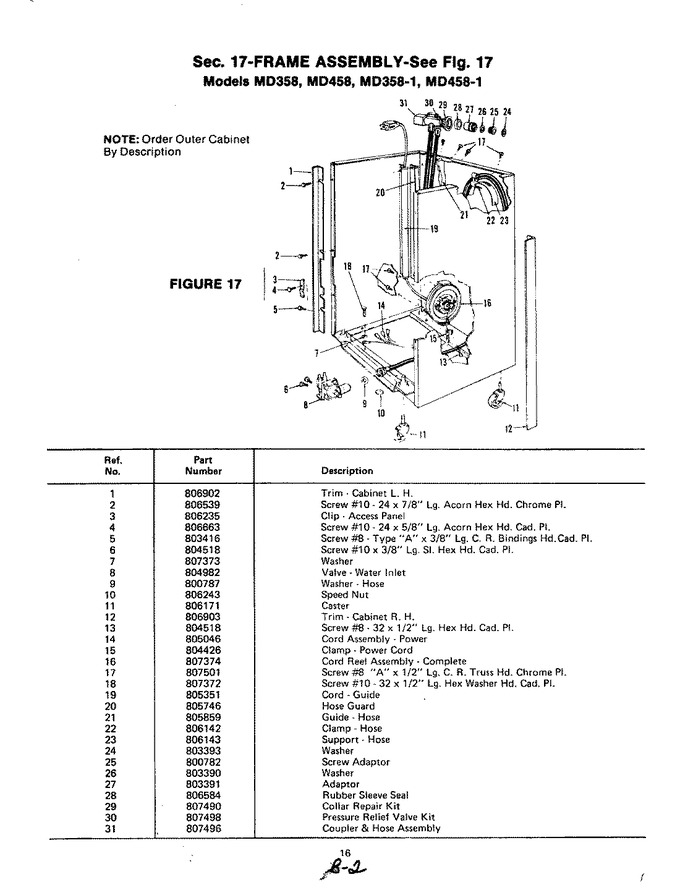

01 - Control Panel (ud358, Ud358-1)


02 - Detergent Cup


03 - Door Details (md358, Md358-1)


04 - Frame Assembly (md358, Md358-1)


05 - Motor, Heater & Spray Arm (md358)


06 - Tub (md358)


07 - Tub (ud358-1)


08 - Wood Top (md358, Md358-1)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806902		Lh Trim		Appelez-nous	-
2	806539		Screw		Appelez-nous	-
3	806235		Clip		Appelez-nous	-
4	806663		Screw		Appelez-nous	-
5	W11233072		Screw   (Replaces: 803416)			Immediately	$ 12.62
6	804518		Screw		Appelez-nous	-
7	807373		Washer		Appelez-nous	-
8	WD15X93		Inlet Valve   (Replaces: 804982)				$ 64.56
9	800787		Hose Washer		Appelez-nous	-
10	806243		Speednut		Appelez-nous	-
11	806171		Caster		Appelez-nous	-
12	806903		Rh Trim		Appelez-nous	-
13	804518		Screw		Appelez-nous	-
14	805046		Power Cord		Appelez-nous	-
15	804426		Clamp		Appelez-nous	-
16	807374		Hose Asm		Appelez-nous	-
17	807501		Screw		Appelez-nous	-
18	807372		Screw		Appelez-nous	-
19	805351		Cord Guide		Appelez-nous	-
20	805746		Hose Guard		Appelez-nous	-
21	805859		Hose Guide		Appelez-nous	-
22	806142		Hose Clamp		Appelez-nous	-
23	806143		Hose Support		Appelez-nous	-
24	803393		Washer		Appelez-nous	-
25	800782		Adaptor		Appelez-nous	-
26	803390		Washer		Appelez-nous	-
27	30168LF		Adapter   (Replaces: 803391)			Immediately	$ 10.94
28	WP910218		U Packing   (Replaces: 806584)			Immediately	$ 9.05
29	807490		Collar Repair		Appelez-nous	-
30	807498		Relief Kit		Appelez-nous	-
31	DWD8C		Hose Asm   (Replaces: 807496)		Appelez-nous	-
