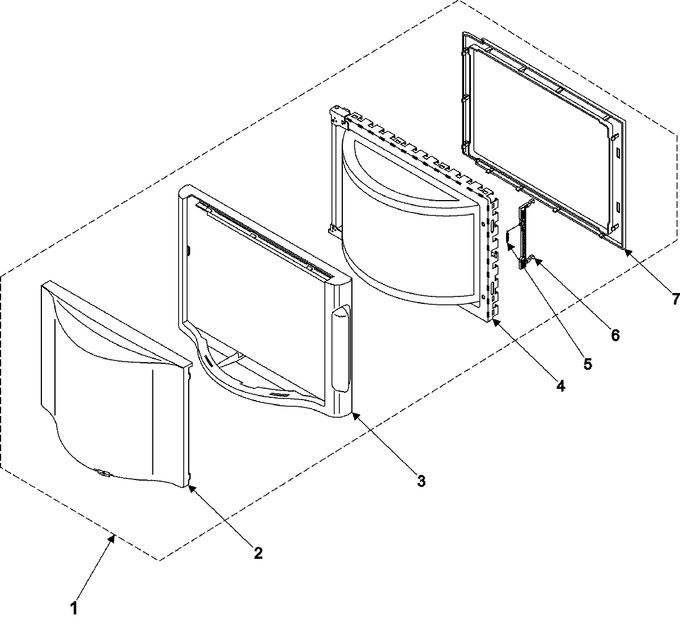

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE94-00855B | Assy Door |
|
- | |||||
| 2 | DE64-00893A | Screen-door(b) |
|
- | |||||
| 3 | DE64-00890A | Door-a |
|
- | |||||
| 4 | DE94-00859A | Assy Door-e |
|
- | |||||
| 5 | DE61-00630A | Spring Etc-key;md800wc/sc,-,-, |
|
- | |||||
| 6 | DE64-00891A | Key-door |
|
- | |||||
| 7 | DE64-01310A | Door-c;md800wc/xaa,pp(tb53),-, |
|
- |
