Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DE94-00857A Assy Control-box(tc) Appelez-nous -
2 DE64-00899B Decoration-cover(tc);mr87/mr89 Appelez-nous -
3 DE96-00344A Assy-key Module Appelez-nous -
4 DE64-00894A Control-panel(tc) Appelez-nous -
5 DE64-00897A Window-display(tc) Appelez-nous -
6 DE34-00194A Switch Membrane Appelez-nous -
7 DE63-00195A Cover-mgt Special Order $ 3.42

8 555555 Motor-drive   (Replaces: DE31-10154A) Special Order $ 151.94

9 DE67-00180A Coupler Special Order $ 6.95

10 DE97-00401A Assy-guide Roller Special Order $ 31.25

11 DE74-20015G Tray, Cooking Special Order $ 86.37

12 DE47-20060A Sw-thermo In-Stock Immediately $ 17.58

13 DE66-20095B Button-lock Special Order $ 17.58

14 DE47-20173A Thermostat Special Order $ 21.43

16 DE64-00889A Panel-outer Appelez-nous -
17 DE67-00189A Cap-side Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

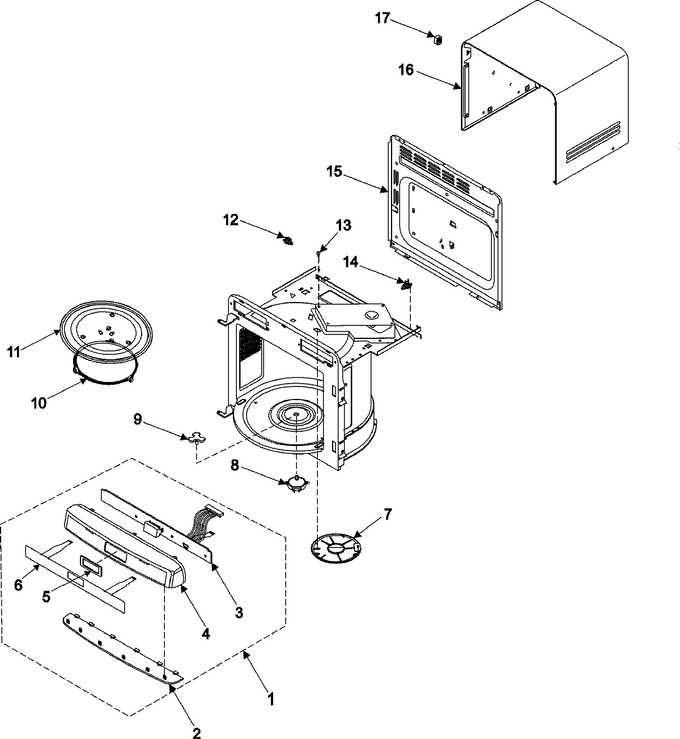

Diagram for MD800WC
