SELECT A DIAGRAM

01 - Oven


02 - Control Panel


03 - Oven Door, Literature


04 - Cooktop, Optional


05 - Internal Oven


06 - Convection Fan


07 - Utility Drawer And Rail


08 - Wiring Harness

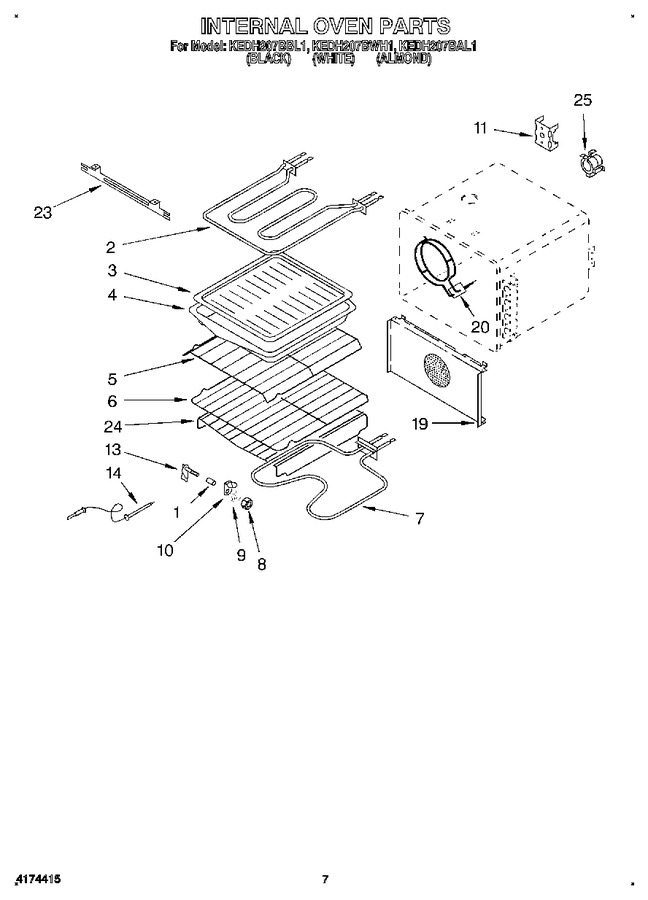

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3179672		Spacer - Tubing		Appelez-nous	-
2	3179117		Screw (2)		Appelez-nous	-
2	3182451		Element, Broil		Appelez-nous	-
3	4396923		Grill, Broiler   (Replaces: 3147563)			Immediately	$ 52.04
4	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
5	3181639		Rack, Offset		Appelez-nous	-
6	3181638		Rack, Straight		Appelez-nous	-
7	WP661416		Element, Bake   (Replaces: 661416)				$ 131.33
8	4167277		Nut, Meat Probe		Appelez-nous	-
9	4163975		Gasket, Meat Probe		Appelez-nous	-
10	4167266		Cover, Probe		Appelez-nous	-
11	3182042		Bracket, Support Motor		Appelez-nous	-
13	3150107		Receptacle, Probe		Appelez-nous	-
14	3150144		Meat Probe				$ 106.70
19	WP681414		Screw, Ground (6)   (Replaces: 343641)			Immediately	$ 7.07
19	3181724		Cover, Fan		Appelez-nous	-
19	3179117		Screw (6)		Appelez-nous	-
20	3179117		Screw (3)		Appelez-nous	-
20	661460		Element, Convection		Appelez-nous	-
23	3180694		Bracket, Element		Appelez-nous	-
23	3179117		Screw (2)		Appelez-nous	-
24	3181534		Rack, Roasting		Appelez-nous	-
25	3149653		Spst Thermostat				$ 134.40
25	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
