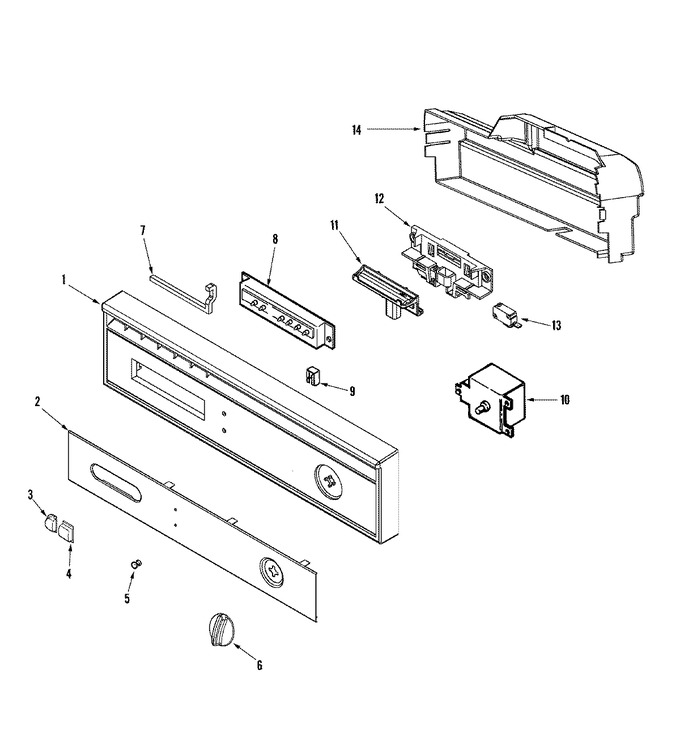

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001591		Panel, Control (blk)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99002958		Facia (blk)	10	Appelez-nous	-
3	99001491		Button, Switch (end-blk)	10	Appelez-nous	-
4	99001493		Button, Switch (mdl-blk)	10	Appelez-nous	-
5	Y912696		Lens, Indicator Light	10			$ 5.02
6	99001872		Knob, Timer (blk)	10			$ 50.14
7	Y913116		Liner, Vent	10	Appelez-nous	-
7	Y913177		Seal, Vent Outlet	10	Appelez-nous	-
8	99001611		Switch, Control (6-button)	10	Appelez-nous	-
9	903115		Lock Light	10			$ 5.70
10	99002431		Timer	10			$ 188.85
10	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
11	W10834433		Handle, Latch (blk)   (Replaces: 99002084)	10		Immediately	$ 108.37
12	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
12	WP99002240		Holder, Switch   (Replaces: 99002240)	10			$ 63.31
13	WP99002207		Switch, Door   (Replaces: 99002207)	10			$ 30.87
14	99001588		Barrier, Control Panel	10	Appelez-nous	-
15	99002495		Harness, Wire	10	Appelez-nous	-
