02 - Cabinet Parts
03 - Tub Detail
04 - Transmission Parts

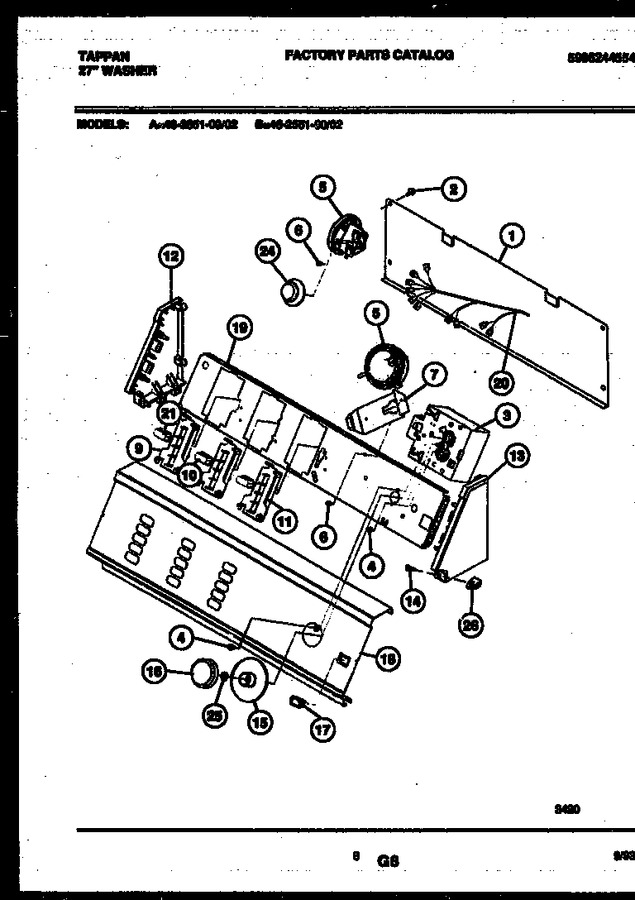

05 - Console And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 5308006553 | Screw (4) |
|
- | |||||
| 3 | 5303271769 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047700 | Switch-pressure |
|
- | |||||
| 6 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 7 | 5303291342 | Bracket - Switch |
|
- | |||||
| 9 | 131047600 | Switch-temperature |
|
- | |||||
| 10 | 131118100 | Switch-speed |
|
- | |||||
| 12 | 5303291344 | End Cap-lh |
|
$ 59.59 | |||||
| 13 | 5303291352 | End Cap-rh |
|
$ 56.49 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131030500 | Dial |
|
- | |||||
| 16 | 131030400 | Knob-timer |
|
- | |||||
| 18 | 131050800 | Panel - Control |
|
- | |||||
| 19 | 131157805 | Bracket - Controls |
|
- | |||||
| 20 | 131165700 | Harness |
|
- | |||||
| 21 | 131033300 | Pushbutton (8) |
|
- | |||||
| 24 | 131032500 | Knob, Rotary |
|
$ 64.10 | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 5300503065 | Clip |
|
$ 6.09 | |||||
| *89781 | 08001689 | Screw |
|
- | |||||
| *89782 | 5303281035 | Screw - Cabinet (grd.) |
|
- |
