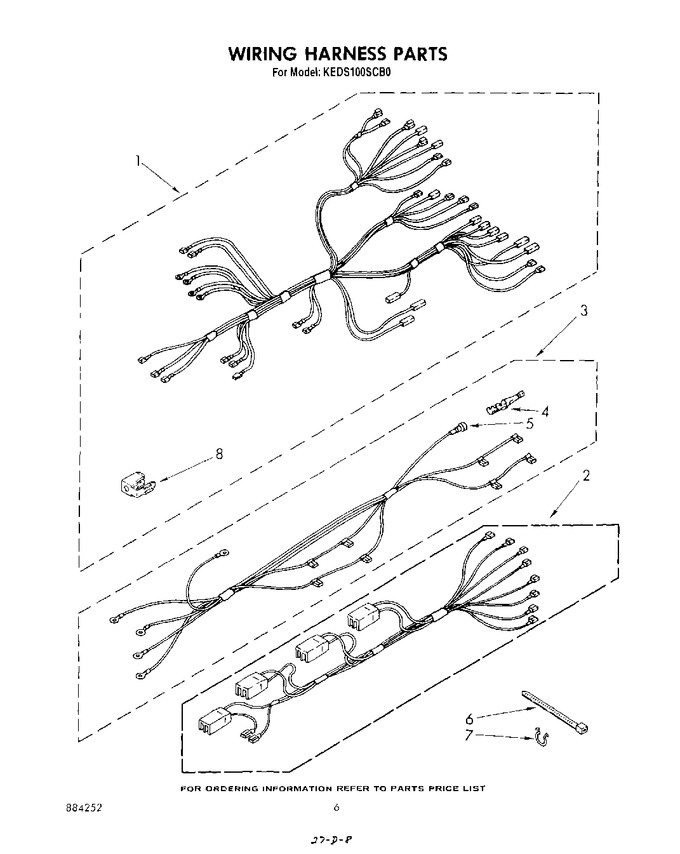

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313867		Harness, Wire (main)		Appelez-nous	-
2	3147976		Harness, Wire (surface Unit)		Appelez-nous	-
3	313464		Harness, Wire (infinite Switch)		Appelez-nous	-
4	94613		Terminal		Appelez-nous	-
5	351297		Block, Disconnect		Appelez-nous	-
6	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
7	16515		Clip, Harness (2)   (Replaces: 313438)				$ 17.60
8	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
8	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
8	261810		Touch-up Self-clean (1/2 Pt.)		Appelez-nous	-
8	261582		Grease		Appelez-nous	-
8	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
8	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
8	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
8	261881		Rotisserie Kit		Appelez-nous	-
8	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
8	3147832		Adapter, Terminal		Appelez-nous	-
8	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
8	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
8	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
8	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
8	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
8	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
8	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
8	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
8	242831		Wire (14 Ga. 200 C Red)				$ 342.23
8	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	LIT3147412		Guide, Use & Care		Appelez-nous	-
	LIT884252		List, Repair Parts		Appelez-nous	-
	LIT3147469		Book, Cooking Guide		Appelez-nous	-
	LIT3147842		Tech Sheet		Appelez-nous	-
	LIT3147380		Instructions, Installation		Appelez-nous	-
