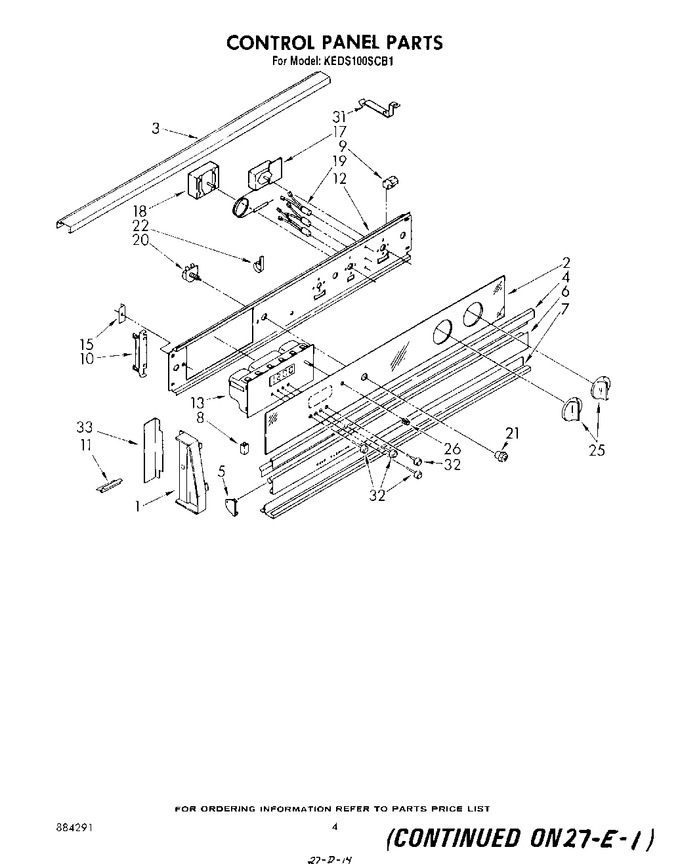

03 - Control Panel
04 - Door
05 - Wiring Harness , Literature And Optional
06 - Cook Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148017 | End Cap R.h. |
|
- | |||||
| 1 | 308504 | Screw (2) |
|
- | |||||
| 1 | 3148905 | Washer (2) (silicone) |
|
- | |||||
| 1 | 342043 | Screw (2) |
|
- | |||||
| 1 | 3148016 | End Cap. L.h. |
|
- | |||||
| 2 | 3147676 | Control Panel, Glass |
|
- | |||||
| 3 | 314240 | Rail, Top |
|
- | |||||
| 4 | 3148295 | Trim, Center |
|
- | |||||
| 5 | 3148698 | End Trim, Vent Door R.h. |
|
- | |||||
| 5 | 3148697 | End Trim, Vent Door L.h. |
|
- | |||||
| 6 | 314188 | Door, Vent |
|
- | |||||
| 7 | 314184 | Trim, Bottom |
|
- | |||||
| 7 | 342043 | Screw (6) |
|
- | |||||
| 8 | 310842 | Channel, Rubber (2) |
|
- | |||||
| 9 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 10 | 330500 | Bracket, Control Panel (2) |
|
- | |||||
| 10 | WP488234 | Screw (4) (Replaces: 9412221) |
|
$ 6.07 | |||||
| 11 | 313865 | Bracket (2) |
|
- | |||||
| 12 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 12 | 313863 | Bracket, Control |
|
- | |||||
| 13 | 3147698 | Timer, Orbitron (included No.14) |
|
- | |||||
| 13 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 15 | 313864 | Bracket, Timer (2) |
|
- | |||||
| 17 | 313861 | Thermostat, Oven |
|
- | |||||
| 17 | 487384 | Screw, 6-32 X 1/4 (2) |
|
- | |||||
| 18 | 312289 | Switch, Selector |
|
- | |||||
| 18 | 155023 | Screw, 8-32 X 1/4 (2) |
|
Immediately | $ 7.91 | ||||
| 19 | 311802 | Light Indicator Oven, Lock & Clean (3) |
|
- | |||||
| 20 | WP965173 | Screw, 8a X 3/8 (4) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 20 | 312581 | Switch, Oven Light |
|
- | |||||
| 20 | 312796 | Washer |
|
- | |||||
| 21 | 313030 | Bezel Switch |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 22 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 25 | 314222 | Knob, Control (2) |
|
- | |||||
| 26 | 313523 | Knob, Timer (1) |
|
$ 13.66 | |||||
| 31 | 3148102 | Brace |
|
- | |||||
| 31 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 32 | 313958 | Button, Set (4) |
|
- | |||||
| 33 | 314246 | Trim, Endcap (2) |
|
- |
