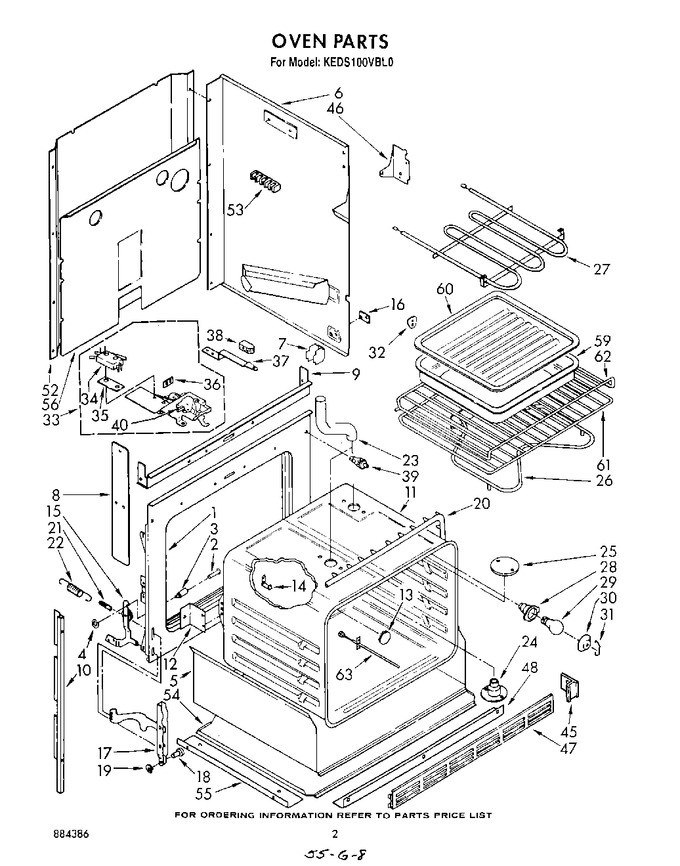

SELECT A DIAGRAM

02 - Oven


03 - Control Panel


04 - Oven Door


05 - Cook Top , Lit/optional


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170856		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	310770		Insulation Tray		Appelez-nous	-
6	WP488729		Screw (14)   (Replaces: 3148107)			Immediately	$ 7.01
6	311009		Side Wrapper (left Side)		Appelez-nous	-
6	311006		Side Wrapper (right Side)		Appelez-nous	-
7	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
8	3148442		Screw (2)		Appelez-nous	-
8	311256		Insulation Baffle (2)		Appelez-nous	-
9	310693		Baffle, Top Insulation		Appelez-nous	-
9	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
10	310685		Side Trim L.h.		Appelez-nous	-
10	WP313808		Screw (4)   (Replaces: 313808)				$ 6.84
10	WP488729		Screw (8)   (Replaces: 3148107)			Immediately	$ 7.01
10	310689		Side Trim (r.h.)		Appelez-nous	-
11	311056		Screw (3)		Appelez-nous	-
11	329003		Oven (30`` Pyro)		Appelez-nous	-
12	WP681414		Screw, Ground (6)   (Replaces: 343641)			Immediately	$ 7.07
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	257314		Plug Button		Appelez-nous	-
14	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
15	328802		Hinge Ear, L.h.		Appelez-nous	-
15	328801		Hinge Ear, R.h.		Appelez-nous	-
16	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 6.98
16	310659		Plate, Side Panel (2)		Appelez-nous	-
17	329713		Channel Arm (2)		Appelez-nous	-
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Ring, Retainer (2)		Appelez-nous	-
20	3148284		Seal, Frame		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
23	310835		Tube, Vent Extension		Appelez-nous	-
23	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.07
23	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
24	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
24	310839		Eliminator, Smoke		Appelez-nous	-
25	312318		Screw (2)		Appelez-nous	-
25	311982		Plate, Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 313638)			Immediately	$ 7.01
26	246127		Screw (2)		Appelez-nous	-
26	WP308180		Unit, Bake   (Replaces: 661170)				$ 96.92
27	312318		Screw (2)		Appelez-nous	-
27	WP660579		Unit, Broil   (Replaces: 3148040)				$ 140.80
28	308043		Screw		Appelez-nous	-
28	660556		Socket, Oven Light		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	308039		Cover, Light		Appelez-nous	-
31	308038		Retainer, Light		Appelez-nous	-
32	311982		Coverplate		Appelez-nous	-
33	3171150		Latch Assembly		Appelez-nous	-
33	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.01
33	311056		Screw (2)		Appelez-nous	-
34	1N4004		Safety Switch   (Replaces: 313309)		Appelez-nous	-
34	98106		Screw (2)		Appelez-nous	-
35	309245		Insulator, Switch		Appelez-nous	-
36	309258		Screw		Appelez-nous	-
36	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
36	313035		Terminal, Shield		Appelez-nous	-
37	310825		Latch, Handle		Appelez-nous	-
37	308422		Screw (2)		Appelez-nous	-
38	311253		Knob, Latch Handle		Appelez-nous	-
38	246135		Screw		Appelez-nous	-
39	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
39	310345		Switch, Door				$ 94.86
40	307748		Screw		Appelez-nous	-
40	3148668		Latch Mechanism		Appelez-nous	-
45	WP355515		Trim, End (screw (4))   (Replaces: 355515)				$ 6.90
45	3149430		Trim, End (l.h. (almond))		Appelez-nous	-
45	3149428		Trim, End (l.h. (white))		Appelez-nous	-
45	3149426		Trim, End (l.h. (black))		Appelez-nous	-
45	3149431		Trim, End (r.h. (almond))		Appelez-nous	-
45	3149429		Trim, End (r.h. (white))		Appelez-nous	-
45	3149427		Trim, End (r.h. (black))		Appelez-nous	-
46	3149027		Cover, Side (l.h.)		Appelez-nous	-
46	WP488729		Cover Side (screw (6))   (Replaces: 313638)			Immediately	$ 7.01
46	3149028		Cover, Side (r.h.)		Appelez-nous	-
47	3149333		Vent, Bottom (screw (2))				$ 5.33
47	3149447		Vent, Bottom (white)		Appelez-nous	-
47	314235		Vent, Bottom (clip Mtg (2))		Appelez-nous	-
47	3149448		Vent, Bottom (almond)		Appelez-nous	-
47	3149446		Vent, Bottom (black)		Appelez-nous	-
48	312006		Screw (3)		Appelez-nous	-
48	3149458		Bracket, Bottom		Appelez-nous	-
52	WP488729		Screw (12)   (Replaces: 3148107)			Immediately	$ 7.01
52	3149542		Back Panel		Appelez-nous	-
53	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
53	308043		Screw		Appelez-nous	-
53	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
54	310458		Cover, Bottom		Appelez-nous	-
55	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
55	311592		Angle, Support (2)		Appelez-nous	-
56	311012		Cover, Rear		Appelez-nous	-
56	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
59	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
60	4396923		Grill, Broiler Pan   (Replaces: 3147563)			Immediately	$ 52.04
61	308173		Rack, Oven		Appelez-nous	-
62	308172		Rack, Oven (offset)		Appelez-nous	-
63	3149328		Insulation, Top		Appelez-nous	-
63	310434		Insulation, Oven		Appelez-nous	-
63	3148440		Sensor		Appelez-nous	-
63	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
63	310433		Insulation, Wrap		Appelez-nous	-
