View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Pump & Motor
04 - Rinse Aid & Soap Dispenser
05 - Track & Rack Assembly
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

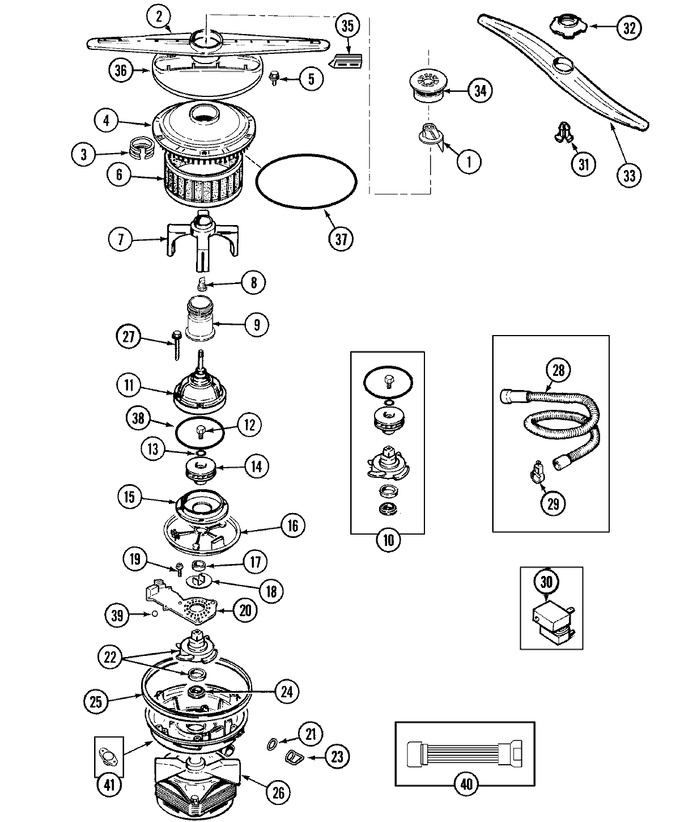

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99001787 | Nozzle, Jump Up (gray) | 12 |
|
$ 5.84 | ||||
| 2 | WP99001788 | Arm Assy., Wash (lwr-gray) (Replaces: 99001788) | 12 |
|
$ 120.97 | ||||
| 3 | 912313 | Ring, Seal | 12 |
|
$ 33.76 | ||||
| 4 | 99001789 | Filter Assy., Secondary | 12 |
|
- | ||||
| 5 | 99001790 | Screw, Secondary Filter | 12 |
|
- | ||||
| 6 | 99001791 | Filter, Pump | 12 |
|
$ 23.13 | ||||
| 7 | 99002043 | Assembly, Rinse Arm | 12 |
|
$ 24.60 | ||||
| 8 | 99001426 | Nut, Discharge Housing | 12 |
|
$ 5.84 | ||||
| 9 | 99002041 | Support, Wash Arm | 12 |
|
$ 39.36 | ||||
| 10 | 99002103 | Seal Kit (motor/pump) | 12 |
|
- | ||||
| 11 | 99002461 | Discharge Housing Assy (upr) | 12 |
|
- | ||||
| 12 | 910654 | Screw, Impeller | 12 |
|
$ 6.05 | ||||
| 13 | 910934 | Seal, O-ring | 12 |
|
$ 5.83 | ||||
| 14 | WP99002069 | Impeller Assembly (Replaces: 99002069) | 12 |
|
Immediately | $ 53.12 | |||
| 15 | 99001793 | Plate, Suction | 12 |
|
$ 9.27 | ||||
| 16 | 99001794 | Support, Filter | 12 |
|
- | ||||
| 17 | 912510 | O-ring | 12 |
|
$ 5.75 | ||||
| 18 | 912310 | Disc, Cutter | 12 |
|
$ 5.22 | ||||
| 19 | 61002031 | Screw (Replaces: 99001081) | 12 |
|
$ 41.36 | ||||
| 20 | 99001795 | Cover, Drain | 12 |
|
- | ||||
| 21 | 99001799 | Flapper, Valve | 12 |
|
- | ||||
| 22 | 903304 | Drain Impeller Assembly | 12 |
|
- | ||||
| 23 | 99001800 | Clip, Retainer | 12 |
|
- | ||||
| 24 | 902882 | Seal, Pump | 12 |
|
$ 28.18 | ||||
| 25 | 912529 | Gasket, Pump | 12 |
|
$ 35.78 | ||||
| 26 | 99002088 | Motor&pump Housing Assembly | 12 |
|
- | ||||
| 26 | 99002481 | Motor/pump Housing Assembly | 25 |
|
- | ||||
| 27 | 912383 | Screw | 12 |
|
- | ||||
| 28 | 99001782 | Hose, Drain | 12 |
|
$ 60.56 | ||||
| 29 | WP616099 | Clamp, Hose (1 3/8``) (Replaces: 99001774) | 12 |
|
Immediately | $ 7.03 | |||
| 30 | 99001425 | Relay, Motor | 12 |
|
- | ||||
| 30 | Y913156 | Bracket, Relay | 12 |
|
- | ||||
| 30 | 912612 | Screw, Relay | 12 |
|
- | ||||
| 31 | Y912681 | Retainer, Snap Spray | 12 |
|
- | ||||
| 32 | 912680 | Outlet, Snap | 12 |
|
$ 22.87 | ||||
| 33 | 99002418 | Arm, Wash (upr-wht) | 12 |
|
$ 30.07 | ||||
| 34 | WP99001428 | Cap, Wash Arm (gray) (Replaces: 99001428) | 12 |
|
$ 7.04 | ||||
| 35 | Y912895 | Shield, Radiant | 12 |
|
- | ||||
| 36 | WP99001796 | Guard, Filter (gray) (Replaces: 99001796) | 12 |
|
$ 20.39 | ||||
| 37 | 99001797 | O-ring | 12 |
|
$ 26.90 | ||||
| 38 | 99001326 | Gasket, Discharge Hsng (upr) | 12 |
|
$ 5.84 | ||||
| 39 | 99001798 | Ball, Check | 12 |
|
- | ||||
| 40 | 99002104 | Wire, Jumper (motor) | 12 |
|
- | ||||
| 41 | 99001980 | Flange, Thermostat/thermistor | 10 |
|
- | ||||
| 41 | 99001981 | Thermostat, Boost | 12 |
|
- | ||||
| 41 | 99001979 | O-ring, Pump Thermostat | 12 |
|
$ 39.87 |
