SELECT A DIAGRAM

02 - Cook Top


03 - Door


04 - Control Panel


05 - Oven

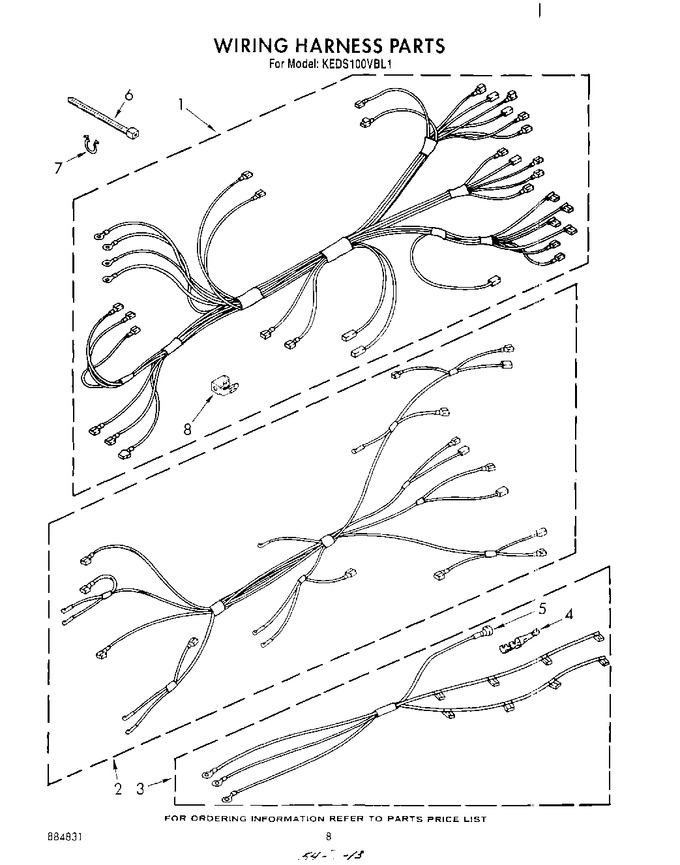

06 - Wiring Harness , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3149770		Harness, Wire (main)		Appelez-nous	-
2	3147828		Harness, Wire (surface Unit)		Appelez-nous	-
3	313464		Harness, Wire (infinite Switch)		Appelez-nous	-
4	94613		Terminal		Appelez-nous	-
5	351297		Block, Disconnect		Appelez-nous	-
6	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
7	16515		Clip, Harness (2)   (Replaces: 313438)				$ 17.60
8	3147832		Adapter, Terminal		Appelez-nous	-
	261881		Rotisserie Kit		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	LIT3147380		Instructions, Installation		Appelez-nous	-
	LIT3147430		Guide, Use & Care		Appelez-nous	-
	LIT3149670		Book, Cooking Guide		Appelez-nous	-
	LIT884831		List, Repair Parts		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	261810		Touch-up Self-clean (1/2 Pt.)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	261825		Console		Appelez-nous	-
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	LIT3148391		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
