SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Pump & Motor


04 - Rinse Aid & Soap Dispenser


05 - Supplemental Information


06 - Track & Rack Assembly


07 - Tub


08 - Wiring Information

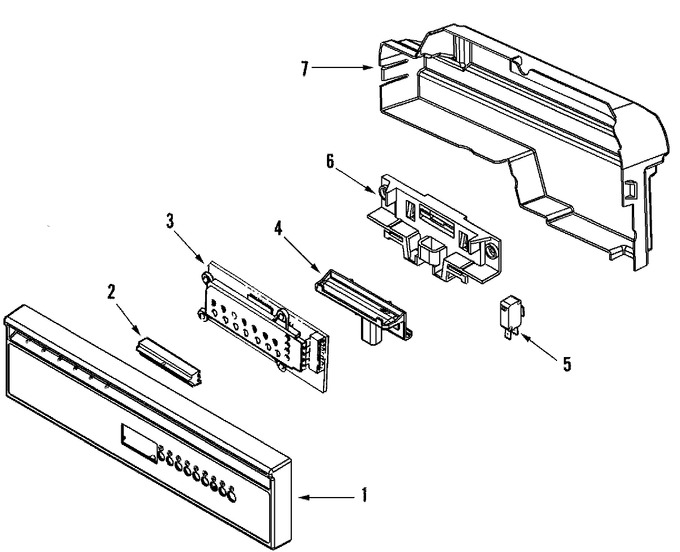

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002985		Panel, Control (wht)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	Y913116		Liner, Vent	10	Appelez-nous	-
2	Y913177		Seal, Vent Outlet	10	Appelez-nous	-
3	99002829		Control Assembly (led)	10	Appelez-nous	-
3	99002425		Cover, Control (micro)	10	Appelez-nous	-
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
4	99002382		Cover, Latch	10	Appelez-nous	-
4	W10834433		Handle, Latch (wht)   (Replaces: 99002085)	10		Immediately	$ 108.37
5	WP99002207		Switch, Door   (Replaces: 99002207)	10			$ 30.87
6	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
6	WP99002240		Holder, Switch   (Replaces: 99002240)	10			$ 63.31
7	99002432		Barrier, Control Panel	10	Appelez-nous	-
8	99002494		Harness, Wire	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
