02 - Cooktop

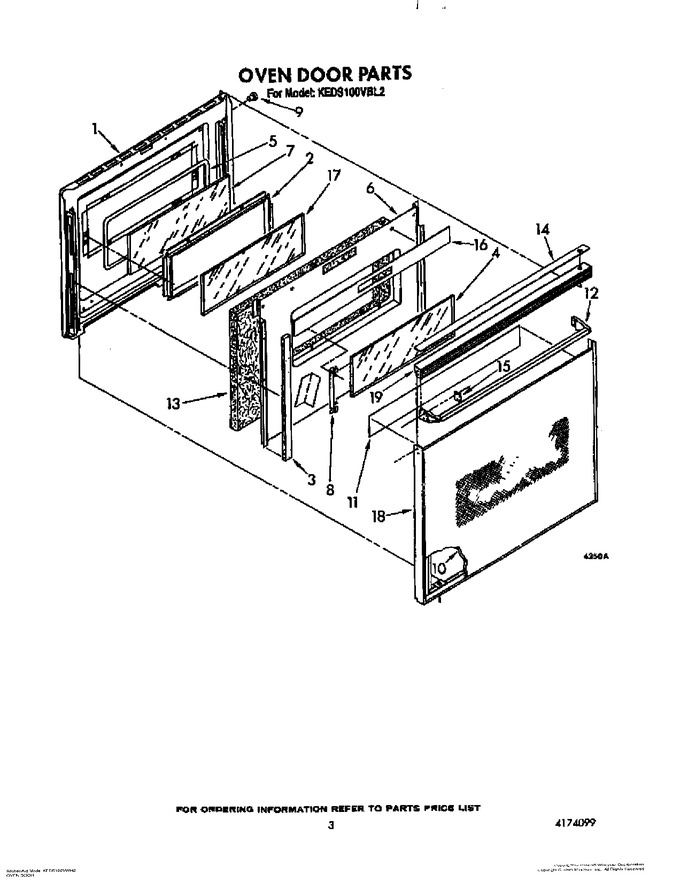

03 - Oven Door


04 - Control Panel


05 - Oven, Lit/optional


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148443		Screw (6)		Appelez-nous	-
1	3172218		Liner, Door		Appelez-nous	-
2	3148443		Screw (6)		Appelez-nous	-
2	3148234		Frame, Window		Appelez-nous	-
3	3148443		Screw (6)		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148723		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inner   (Replaces: 313004)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Panel (black)		Appelez-nous	-
10	3149050		Glass, Panel (almond)		Appelez-nous	-
10	3149049		Glass, Panel (white)		Appelez-nous	-
11	3148184		Foil		Appelez-nous	-
12	3147636		Handle, Oven Door (black)		Appelez-nous	-
12	3147637		Handle, Oven Door (white)		Appelez-nous	-
12	3147638		Handle, Oven Door (almond)		Appelez-nous	-
12	WP355515		Handle, Oven Door (screw (4))   (Replaces: 355515)				$ 6.90
13	3147951		Insulation		Appelez-nous	-
14	3149473		Cap, Top White - Almond		Appelez-nous	-
15	314235		Clip, Mtg.(2)		Appelez-nous	-
16	3148680		Shield		Appelez-nous	-
16	254225		Screw (2)		Appelez-nous	-
17	WP3169203		Glass, Outer   (Replaces: 313005)				$ 135.71
18	3148785		Frame (white)		Appelez-nous	-
18	3148786		Frame (almond)		Appelez-nous	-
18	3148784		Frame (black)		Appelez-nous	-
19	3148606		Door Top (black)		Appelez-nous	-
19	3149675		Door Top (white - Almond)		Appelez-nous	-
19	3149333		Door Top (screw (2) Black)				$ 5.33
19	WP308685		Door Top (screw (2) White - Almond)   (Replaces: 9416643)			Immediately	$ 7.08
