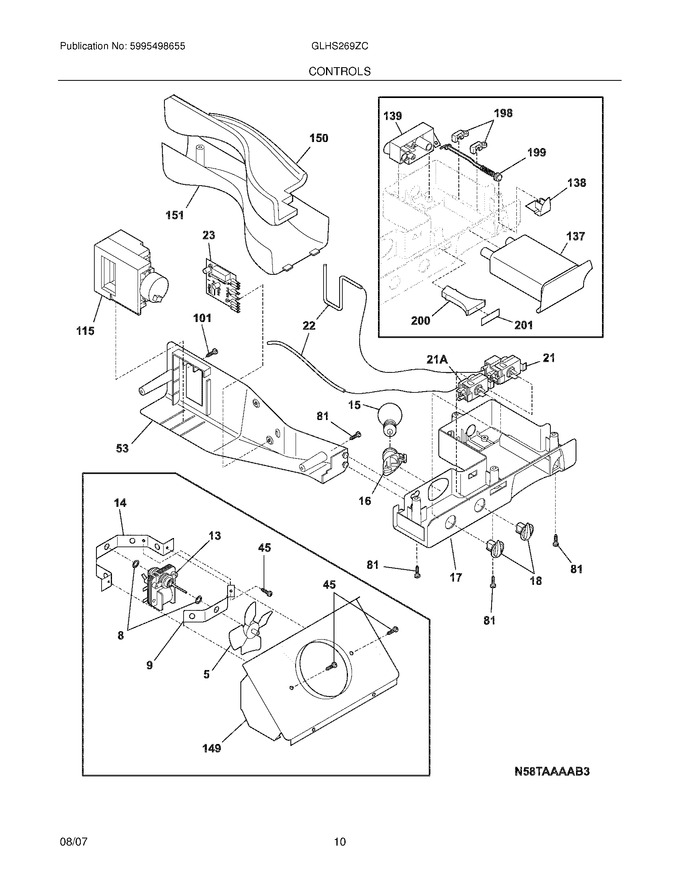

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	240317701		Box-control,front				$ 105.95
18	240360801		Knob-temp Control				$ 43.95
22	218660702		Tube-insulator		Appelez-nous	-
23	240554501		Control-defrost,adaptive Timer ,pc Board		Appelez-nous	-
45	5304455651		Screw,hex Washer Head ,8-15a X 0.500   (Replaces: 5303001343)				$ 14.41
53	240369501		Box-control				$ 78.37
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
115	240521103		Damper Assy,w/seal		Appelez-nous	-
137	WF2CB		Filter,water ,carbon Cassette ,front ,with O`rings   (Replaces: 240396401)			Immediately	$ 108.24
138	240397301		Button-filter Release				$ 91.76
139	240396002		Base-water Filter   (Replaces: 240396001)			Immediately	$ 119.66
149	240331602		Shroud-fan Orfice		Appelez-nous	-
150	240394204		Insulation-water Tube Cover		Appelez-nous	-
151	240373806		Cover-water Tube				$ 101.06
198	240397401		Retainer				$ 59.54
199	240398401		Spring-filter Release Rod				$ 59.16
199	240397501		Rod				$ 55.57
200	240397601		Light Pipe				$ 76.65
201	240398509		Label-control Box		Appelez-nous	-
21A	5304496561		Control-temperature   (Replaces: 5304421768)			Immediately	$ 141.37
F13	5303918549		Motor-evap Fan   (Replaces: 240315802)			Immediately	$ 88.16
F137	242227702		Bypass,water Filter ,optional Part   (Replaces: 240396701)			Immediately	$ 73.16
F139	240527001		O-ring,wtr Filter Base   (Replaces: 240526901)				$ 10.62
F21	240383703		Control-temperature			Immediately	$ 519.48
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,   (Replaces: 5303001259)				$ 17.01
NI	240439901		Wiring Harness,controls				$ 153.85
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	3205266		Edge Protector, Wiring Harness				$ 80.09
NI	240427201		Heater-freezer Control				$ 116.85
NI	240470401		Connector-amp		Appelez-nous	-
