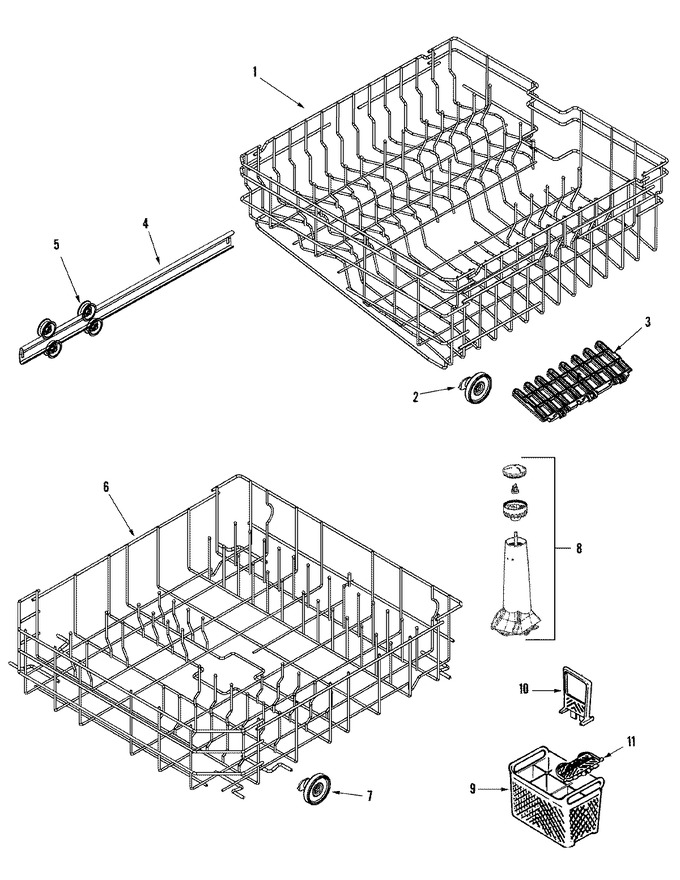

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002460		Rack Assembly (upr)	10	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	10		Immediately	$ 9.65
3	99002416		Shelf, Cup (wht)	10	Appelez-nous	-
4	Y912545		Track, Rack	10			$ 40.33
4	WP99002136		Stop, Rack (wht)   (Replaces: 99002136)	10			$ 12.78
5	99002946		Tub Wheel Assembly (wht)	10	Appelez-nous	-
6	99002459		Rack Assembly (lwr)	10	Appelez-nous	-
7	903815		Wheel Assembly (lwr)	10			$ 14.89
8	99003319		Tower, Spray (assy-wht)	10			$ 121.39
9	WP99001576		Basket, Silverware (wht)   (Replaces: 99001576)	10		Immediately	$ 44.53
10	99001585		Handle, Silverware Basket	10			$ 64.01
11	99002417		Cover, Silverware Basket (wht)	10	Appelez-nous	-
12	99002016		Cap, Rack (wht)	10	Appelez-nous	-
