01 - Backguard Parts
02 - Body Parts

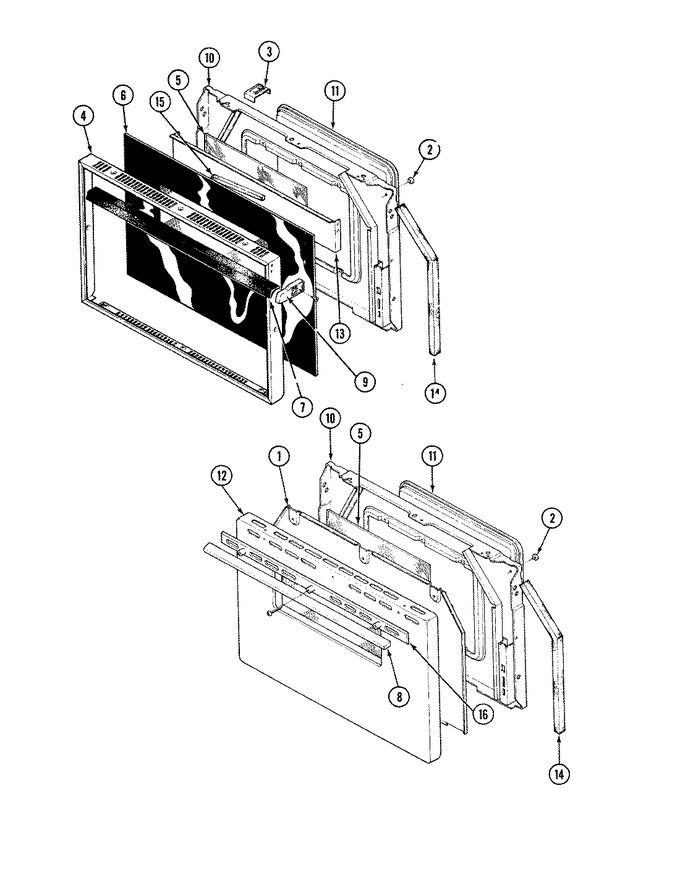

03 - Door
04 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F115-51 | Bracket, Drawer | 1 |
|
- | ||||
| 1 | 3601F093-51 | Baffle | 1 |
|
- | ||||
| 2 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 2 | 8002P021-60 | Catch, Door Lock | 1 |
|
- | ||||
| 2 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 4 | 7201P018-60 | Gasket, Window | 1 |
|
- | ||||
| 4 | 7706P177-60 | Frame, Window | 1 |
|
- | ||||
| 5 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 6 | 8016P004-60 | Glide, Drawer | 23 |
|
- | ||||
| 6 | 8016P009-60 | Glide, Drawer | 23 |
|
- | ||||
| 6 | 7902P101-60 | Glass, Window Outer | 1 |
|
- | ||||
| 6 | 7902P103-60 | Glass, Window | 1 |
|
- | ||||
| 6 | 7902P276-60 | Glass, Door | 1 |
|
- | ||||
| 6 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 8 | 7701P014-76 | Handle, Door Harvest | 1 |
|
- | ||||
| 10 | 2402W128-15 | Lining | 1 |
|
- | ||||
| 11 | 2410W029-12 | Pad Assy, Ov. Dr. | 1 |
|
- | ||||
| 11 | 2416F018-76 | Panel, Storage Dwr Hvt Wheat | 1 |
|
- | ||||
| 12 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 13 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 13 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 13 | 3406F026-51 | Runner (inner) | 21 |
|
- | ||||
| 14 | 7208P007-60 | Seal, Silastic | 1 |
|
- | ||||
| 15 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 15 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 15 | WP854334 | Seal, Door Panel (Replaces: 7208P009-60) | 1 |
|
$ 11.95 | ||||
| 15 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 16 | W10124350 | Not Required Part Or See Note | 1 |
|
- |
