SELECT A DIAGRAM
01 - Backguard Parts
02 - Body Parts
03 - Door Parts

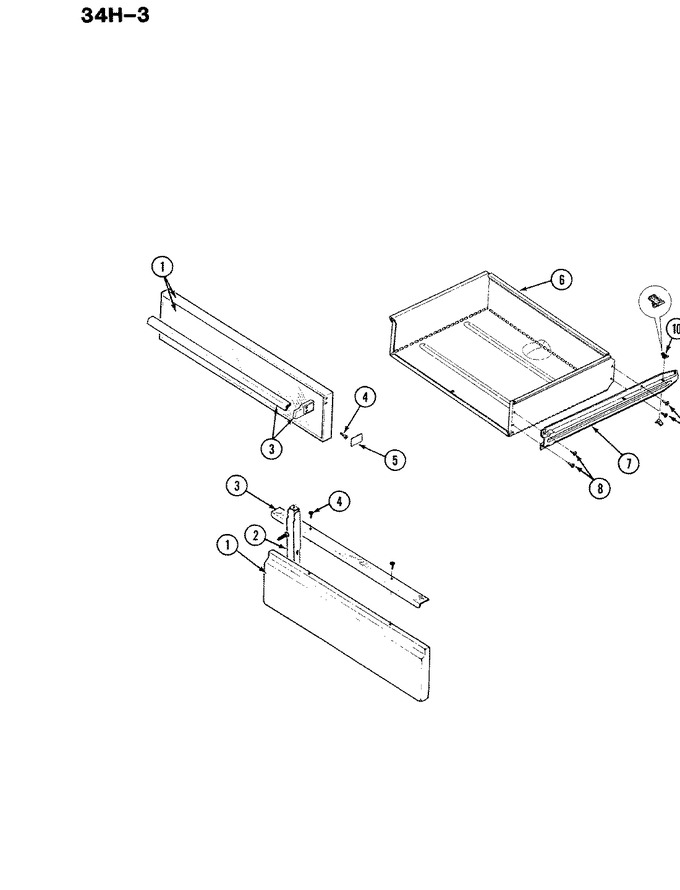

04 - Drawer
05 - Oven Control System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3801F115-51 | Bracket, Drawer | 01 |
|
- | ||||
| 3 | 7701P047-60 | Handle, Door | 01 |
|
- | ||||
| 4 | 7101P123-60 | Screw | 01 |
|
- | ||||
| 5 | 7728P068-60 | Insert, Handle (chrome) | 01 |
|
- | ||||
| 6 | 3405F008-80 | Drawer, Service | 01 |
|
- | ||||
| 7 | 3406F026-80 | Runner, Inner | 01 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 9 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 10 | 8016P004-60 | Glide, Drawer | 01 |
|
- |
