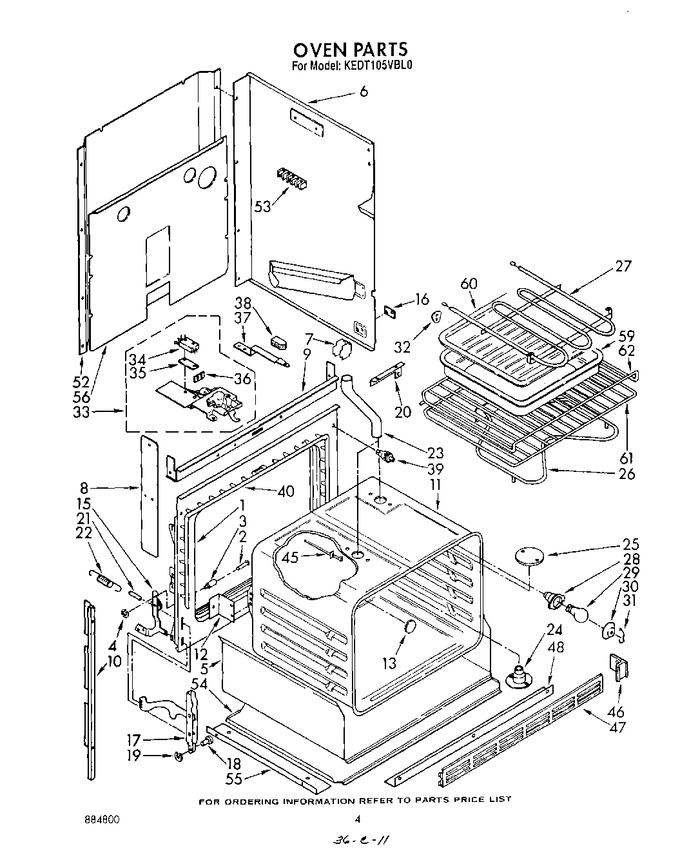

04 - Oven
05 - Wiring Harness
06 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3170855 | Frame, Front |
|
- | |||||
| 2 | 307985 | Pin, Hinge Ear (2) |
|
$ 29.54 | |||||
| 3 | 309111 | Snubber, Door (2) |
|
- | |||||
| 4 | 308306 | Pushnut (2) |
|
- | |||||
| 5 | 310770 | Insulation Tray |
|
- | |||||
| 6 | 311006 | Side Wrapper (right Side) |
|
- | |||||
| 6 | 311009 | Side Wrapper (left Side) |
|
- | |||||
| 7 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 7 | 311774 | Support, Side Wrapper (4) |
|
- | |||||
| 8 | 311256 | Insulation Baffle (2) |
|
- | |||||
| 8 | 3148442 | Screw (2) |
|
- | |||||
| 9 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 9 | 310693 | Baffle, Top Insulation |
|
- | |||||
| 10 | 310685 | Side Trim L.h. |
|
- | |||||
| 10 | 310689 | Side Trim (r.h.) |
|
- | |||||
| 10 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 11 | 311056 | Screw (3) |
|
- | |||||
| 11 | 329003 | Oven, Main |
|
- | |||||
| 12 | 310713 | Bracket, Oven Mounting (2) |
|
- | |||||
| 12 | WP681414 | Screw (6) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 13 | 257314 | Plug Button |
|
- | |||||
| 15 | 328801 | Hinge Ear, R.h. |
|
- | |||||
| 15 | 328802 | Hinge Ear, L.h. |
|
- | |||||
| 16 | 310659 | Plate, Side Panel (2) |
|
- | |||||
| 16 | WP308544 | Screw (4) (Replaces: 308544) |
|
Immediately | $ 6.98 | ||||
| 17 | 329713 | Channel Arm (2) |
|
- | |||||
| 18 | WP307986 | Pin, Hinge (2) (Replaces: 307986) |
|
$ 11.78 | |||||
| 19 | 307594 | Ring, Retainer (2) |
|
- | |||||
| 20 | 307748 | Screw |
|
- | |||||
| 20 | 312320 | Shield, Insulation |
|
- | |||||
| 21 | WP308125 | Anchor, Spring (2) (Replaces: 308125) |
|
$ 10.94 | |||||
| 22 | WP308126 | Spring, Oven Door (2) (Replaces: 308126) |
|
$ 38.15 | |||||
| 23 | 3147220 | Tube, Vent Extension |
|
- | |||||
| 23 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 24 | 310839 | Eliminator, Smoke |
|
- | |||||
| 24 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 25 | 310662 | Plate, Cover |
|
- | |||||
| 25 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 26 | 246127 | Screw (2) |
|
- | |||||
| 26 | WP308180 | Unit, Bake 308180 (alt.) 313827 (alt.) (Replaces: 661170) |
|
$ 96.92 | |||||
| 27 | 246127 | Screw (4) |
|
- | |||||
| 27 | WP660579 | Unit, Broil (Replaces: 3148040) |
|
$ 140.80 | |||||
| 28 | 308043 | Screw (2) 10-12 X 7/8 (2) |
|
- | |||||
| 28 | 660556 | Socket, Oven Light |
|
- | |||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 30 | 308039 | Cover, Light |
|
- | |||||
| 31 | 308038 | Retainer, Light |
|
- | |||||
| 32 | 311982 | Coverplate |
|
- | |||||
| 32 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 32 | 246127 | Screw |
|
- | |||||
| 33 | WP488729 | Screw (2) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 33 | 3171150 | Latch Assembly |
|
- | |||||
| 33 | 311056 | Screw (2) |
|
- | |||||
| 34 | 98106 | Screw (2) |
|
- | |||||
| 34 | 1N4004 | Safety Switch (Replaces: 313309) |
|
- | |||||
| 35 | 309245 | Insulator, Switch |
|
- | |||||
| 36 | 309258 | Screw (2) |
|
- | |||||
| 36 | 313035 | Terminal, Shield |
|
- | |||||
| 36 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 37 | 310825 | Latch, Handle |
|
- | |||||
| 37 | 308422 | Screw (2) |
|
- | |||||
| 38 | 246135 | Screw |
|
- | |||||
| 38 | 311253 | Knob, Latch Handle |
|
- | |||||
| 39 | 310345 | Switch, Door |
|
$ 94.86 | |||||
| 39 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 40 | 3148284 | Seal |
|
- | |||||
| 45 | 3148440 | Sensor |
|
- | |||||
| 45 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 46 | 3149427 | Side Trim, Left Hand (black) |
|
- | |||||
| 46 | WP355515 | Side Trim Left Hand (screw (4)) (Replaces: 355515) |
|
$ 6.90 | |||||
| 46 | 3149431 | Side Trim, Left Hand (almond) |
|
- | |||||
| 46 | 3149426 | Side Trim, Left Hand (black) |
|
- | |||||
| 46 | 3149428 | Side Trim, Left Hand (white) |
|
- | |||||
| 46 | 3149430 | Side Trim Left Hand (almond Side Trim Right Hand) |
|
- | |||||
| 46 | 3149429 | Side Trim, Left Hand (white) |
|
- | |||||
| 47 | 3149446 | Vent, Bottom (black) |
|
- | |||||
| 47 | 3149447 | Vent, Bottom (white) |
|
- | |||||
| 47 | 3149448 | Vent, Bottom (almond) |
|
- | |||||
| 48 | 3149333 | Screw, Black (2) |
|
$ 5.33 | |||||
| 48 | 314235 | Clip Mounting (2) |
|
- | |||||
| 48 | 3149458 | Bracket, Mounting |
|
- | |||||
| 52 | 3149542 | Back Panel |
|
- | |||||
| 52 | WP488729 | Screw (12) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 53 | 308043 | Screw (2) |
|
- | |||||
| 53 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.16 | |||||
| 53 | WP8203546 | Terminal Block (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 54 | 310458 | Cover, Bottom & Top |
|
- | |||||
| 55 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 55 | 311592 | Angle, Support (2) |
|
- | |||||
| 56 | WP488729 | Screw (12) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 56 | 311012 | Cover, Rear |
|
- | |||||
| 59 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 52.04 | ||||
| 60 | 4396923 | Grid, Broiler Pan (Replaces: 3147563) |
|
Immediately | $ 52.04 | ||||
| 61 | 308173 | Rack, Oven |
|
- | |||||
| 62 | 308172 | Rack, Oven (offset) |
|
- |
