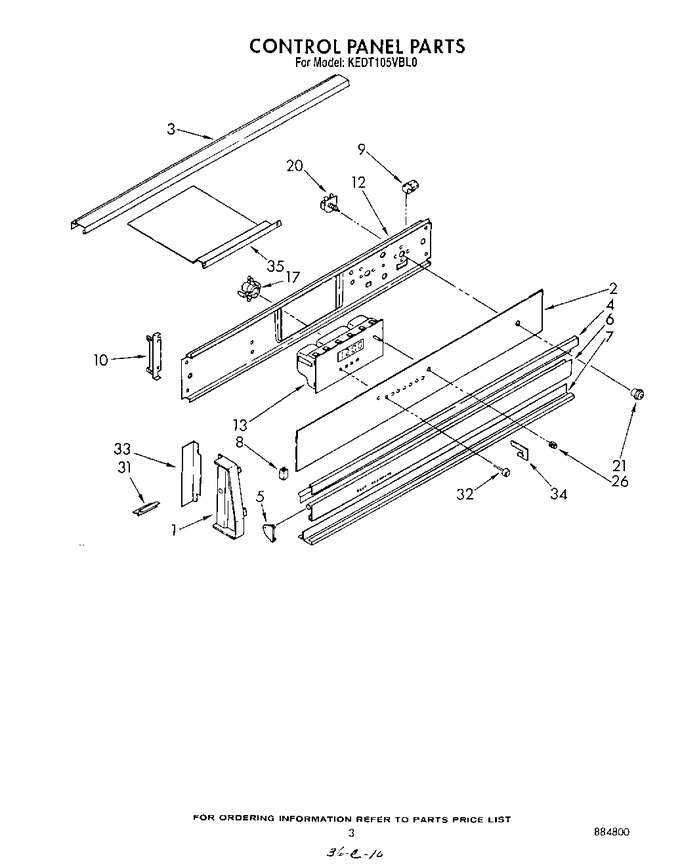

03 - Control Panel
04 - Oven
05 - Wiring Harness
06 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148905 | End Cap. L.h. (washer, Silicone) |
|
- | |||||
| 1 | 3148448 | End Cap. L.h. (white) |
|
- | |||||
| 1 | 3148450 | End Cap, L.h. (almond) |
|
- | |||||
| 1 | 3148016 | End Cap. L.h. (black) |
|
- | |||||
| 1 | 3148447 | End Cap, L.h. (white) |
|
- | |||||
| 1 | 3148449 | End Cap, L.h. (almond) |
|
- | |||||
| 1 | 3148017 | End Cap. L.h. (black) |
|
- | |||||
| 2 | 3148459 | Glass, Control Panel (white) |
|
- | |||||
| 2 | 3148460 | Glass, Control Panel (almond) |
|
- | |||||
| 2 | 3148769 | Glass, Control Panel (black) |
|
- | |||||
| 3 | 314240 | Rail, Top |
|
- | |||||
| 4 | 3149420 | Trim, Center |
|
- | |||||
| 5 | 3148698 | End Trim, R.h. Vent Door (black) |
|
- | |||||
| 5 | 3148471 | End Trim, R.h. Vent Door (white - Almond) |
|
- | |||||
| 5 | 3148697 | End Trim, R.h. Vent Door (black) |
|
- | |||||
| 5 | 3148472 | End Trim, R.h. Vent Door (white - Almond End Trim, L.h. Vent Door) |
|
- | |||||
| 6 | 314190 | Vent Door (black) |
|
- | |||||
| 6 | 3149676 | Vent Door (white - Almond) |
|
- | |||||
| 7 | 342043 | Screw (6) |
|
- | |||||
| 7 | 314184 | Trim, Bottom |
|
- | |||||
| 8 | 310842 | Channel, Rubber (2) |
|
- | |||||
| 9 | 310823 | Retainer, Glass (4) |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 10 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 12 | 3148647 | Bracket, Control |
|
- | |||||
| 13 | 313806 | Screw No.6-32 (4) |
|
- | |||||
| 13 | 3149045 | Oven Control |
|
- | |||||
| 17 | 3149648 | Thermostat, Oven |
|
- | |||||
| 17 | WP313808 | Screw No.6-32x9/32 (2) (Replaces: 313808) |
|
$ 6.84 | |||||
| 20 | 3148465 | Switch, Oven Light (white - Almond) |
|
- | |||||
| 20 | 312796 | Switch, Oven Light (washer) |
|
- | |||||
| 20 | 312581 | Switch, Oven Light (black) |
|
- | |||||
| 21 | 313030 | Bezel Switch |
|
- | |||||
| 21 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 26 | 3149046 | Knob, Timer (1) |
|
- | |||||
| 31 | 3148102 | Brace, Control Bracket |
|
- | |||||
| 32 | 3149040 | Button, Set (8) |
|
- | |||||
| 33 | 3149330 | Almond |
|
- | |||||
| 33 | 314246 | Trim, End Cap |
|
- | |||||
| 33 | 3149329 | White |
|
- | |||||
| 34 | 3149142 | Shield, Air |
|
- | |||||
| 35 | 3149419 | Shield, Heat |
|
- |
