New Model Search:

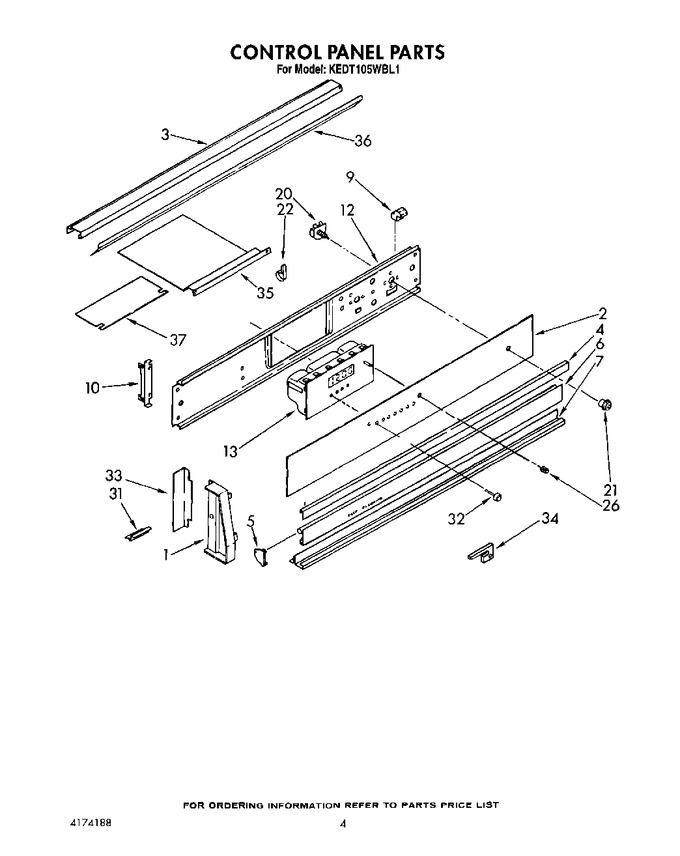

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3150733 | End Cap (r.h.) (almond) |
|
- | |||||
| 1 | 3148905 | (end Cap R.h.) (washer, Silicone) |
|
- | |||||
| 1 | 3150728 | End Cap, L.h. (black) |
|
- | |||||
| 1 | 3150730 | End Cap, L.h. (white) |
|
- | |||||
| 1 | 3150732 | End Cap, L.h. (almond) |
|
- | |||||
| 1 | 3150729 | End Cap (r.h.) (black) |
|
- | |||||
| 1 | 3150731 | End Cap (r.h.) (white) |
|
- | |||||
| 2 | 3150145 | Glass, Control Panel (black) |
|
- | |||||
| 2 | 3150147 | Glass, Control Panel (almond) |
|
- | |||||
| 2 | 3150146 | Glass, Control Panel (white) |
|
- | |||||
| 3 | 314240 | Rail, Top (black) |
|
- | |||||
| 3 | 3148456 | Rail, Top (brite Aluminum) |
|
- | |||||
| 4 | 3148453 | Trim, Center (brite Aluminum) |
|
- | |||||
| 4 | 3149420 | Trim, Center (black) |
|
- | |||||
| 5 | 3148698 | End Trim, R.h. Vent Door (black) |
|
- | |||||
| 5 | 3148697 | (end Trim, L.h. Vent Door) (black) |
|
- | |||||
| 5 | 3148472 | End Trim, R.h. Vent Door (rosemont Grey) |
|
- | |||||
| 5 | 3148471 | (end Trim, L.h. Vent Door) (rosemont Grey) |
|
- | |||||
| 6 | 314190 | Vent Door (black) |
|
- | |||||
| 6 | 3149676 | Vent Door (brushed Chrome) |
|
- | |||||
| 7 | 342043 | Screw (6) |
|
- | |||||
| 7 | 314184 | Trim, Bottom |
|
- | |||||
| 9 | 3149882 | Retainer, Glass (4) |
|
- | |||||
| 10 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 12 | 3148647 | Bracket, Control |
|
- | |||||
| 13 | 313806 | Screw No.6-32 (4) |
|
- | |||||
| 13 | 3149459 | Oven Control |
|
- | |||||
| 20 | 3148465 | Switch, Oven Light (bright Chrome) |
|
- | |||||
| 20 | 312796 | Switch, Oven Light (washer) |
|
- | |||||
| 20 | 312581 | Switch, Oven Light (black) |
|
- | |||||
| 21 | 313030 | Bezel, Switch (black) |
|
- | |||||
| 21 | 3148462 | Bezel, Switch (brite Chrome) |
|
$ 34.10 | |||||
| 21 | 3148463 | Bezel, Switch (almond) |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 22 | 98520 | Screw |
|
- | |||||
| 26 | 3149785 | Knob, Timer (1) (white) |
|
- | |||||
| 26 | 3149786 | Knob, Timer (1) (almond) |
|
- | |||||
| 26 | 3149784 | Knob, Timer (1) (black) |
|
- | |||||
| 31 | 309080 | Screw No.8-32 X 3/8 |
|
- | |||||
| 31 | 3148102 | Brace, Control Bracket |
|
- | |||||
| 32 | 3149781 | Button, Set (8) (white) |
|
- | |||||
| 32 | 3149782 | Button, Set (8) (almond) |
|
- | |||||
| 32 | 3149780 | Button, Set (8) (black) |
|
- | |||||
| 33 | 3149902 | Trim, End Cap (almond) |
|
- | |||||
| 33 | 3149901 | Trim, End Cap (white) |
|
- | |||||
| 33 | 3149900 | Trim, End Cap (black) |
|
- | |||||
| 34 | 3149142 | Shield, Air |
|
- | |||||
| 35 | 98520 | Screw |
|
- | |||||
| 35 | 3149419 | Shield, Heat |
|
- | |||||
| 35 | 309080 | Screw No.8-32 X 3/8 |
|
- | |||||
| 36 | 313316 | Seal |
|
- | |||||
| 37 | 3171507 | Mounting Hardware |
|
- | |||||
| 37 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 37 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 37 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 37 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 37 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 37 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 37 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 37 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 37 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 37 | 814128 | Anti-tip Kit |
|
- | |||||
| 37 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 37 | 3150352 | Shield, Control |
|
- | |||||
| 37 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 37 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 37 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- |
