SELECT A DIAGRAM

Diagram for 01 - Cooktop
01 - Cooktop

Diagram for 02 - Oven Door
02 - Oven Door

Diagram for 03 - Control Panel, Optional
03 - Control Panel, Optional

Diagram for 04 - Oven, Literature
04 - Oven, Literature

Diagram for 05 - Internal Convection Oven
05 - Internal Convection Oven

Diagram for 06 - Utility Drawer And Rail
06 - Utility Drawer And Rail

Diagram for 07 - Convection Fan
07 - Convection Fan

Diagram for 08 - Wiring Harness
08 - Wiring Harness


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3187283 Harness, Wire (main) Appelez-nous -
2 3147825 Harness, Wire (suface Unit) Appelez-nous -
3 3147269 Harness, Wire (infinite Switch) Appelez-nous -
7 16515 Clip, Harness (2)   (Replaces: 313438) Special Order $ 17.60

7 307748 Screw (2) Appelez-nous -
7 308504 Screw (2) Appelez-nous -
8 WP308605 Clamp, Cable   (Replaces: 308605) Special Order $ 10.08


    View Diagram in Separate Window     Print Icon   Print Part List

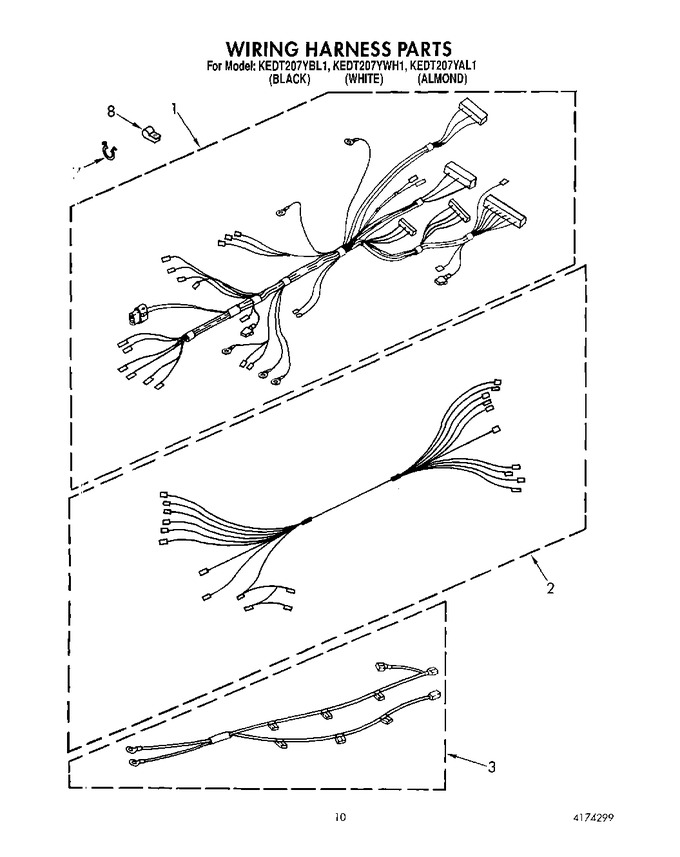

Diagram for KEDT207YBL1
