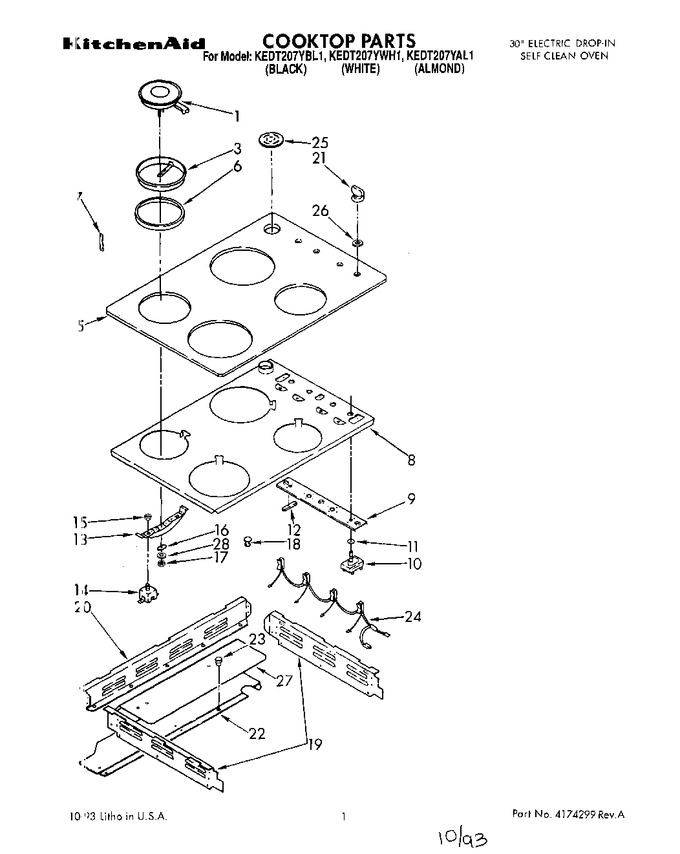

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3182762 | Surface Unit, 8`` (2) |
|
- | |||||
| 1 | 8203517 | Surface Unit, 6`` (2) (Replaces: 3183693) |
|
$ 205.97 | |||||
| 3 | 3147188 | Gasket (2) (8`` Burner) |
|
- | |||||
| 3 | 3147187 | Gasket (2) (6`` Burner) |
|
- | |||||
| 5 | 3150105 | Glass Top (almond) |
|
- | |||||
| 5 | 3150104 | Glass Top (white) |
|
- | |||||
| 5 | 3150103 | Glass Top (black) |
|
- | |||||
| 6 | 3148561 | 8`` Seal (2) |
|
- | |||||
| 6 | 3148562 | 6`` Seal (2) |
|
- | |||||
| 7 | 3148563 | Hook, Seal (4) |
|
- | |||||
| 8 | 3147038 | Plate, Backup |
|
- | |||||
| 9 | 254225 | Screw No.8x1/4 (3) |
|
- | |||||
| 9 | 3147735 | Bracket, Switch |
|
- | |||||
| 10 | 3148958 | Switch, Infinite (8`` Burner) |
|
- | |||||
| 10 | WP486579 | Switch, Infinite (screw No.8-32 (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 10 | 3148949 | Switch, Infinite (6`` Burner) |
|
$ 67.77 | |||||
| 11 | 309839 | Seal, Shaft (4) |
|
- | |||||
| 12 | 3147485 | Tape, Foam |
|
- | |||||
| 13 | 3147704 | Bracket, Mounting (8`` Burner) |
|
- | |||||
| 13 | 3147703 | Bracket, Mounting (6`` Burner) |
|
- | |||||
| 14 | 3148397 | Protector (4) |
|
- | |||||
| 15 | 3147190 | Nut (4) |
|
- | |||||
| 16 | 3148615 | Washer, Flat (4) |
|
- | |||||
| 16 | 3147191 | Spring, Leaf (4) |
|
- | |||||
| 17 | 3147189 | Nut (4) |
|
- | |||||
| 18 | 311688 | Lens (4) |
|
- | |||||
| 19 | 3147025 | Rail, Support (r.h.) |
|
- | |||||
| 19 | 3147024 | Rail, Support (l.h.) |
|
- | |||||
| 20 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 20 | 3147061 | Rail, Back, Support (2) |
|
- | |||||
| 21 | 3150096 | Knob, Control (4) (shadow Grey) |
|
- | |||||
| 21 | 3150100 | Knob, Control (4) (black) |
|
$ 21.50 | |||||
| 21 | 3150097 | Knob, Control (4) (coffee Bean) |
|
- | |||||
| 22 | WP488729 | Screw (3) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 22 | 3147566 | Cover, Top |
|
- | |||||
| 23 | 258109 | Bushing |
|
- | |||||
| 24 | 3148054 | Indicator, Light |
|
- | |||||
| 25 | 3182496 | Cover, Vent (black) |
|
- | |||||
| 25 | 3182497 | Cover, Vent (white) |
|
- | |||||
| 25 | 3182498 | Cover, Vent (almond) |
|
- | |||||
| 26 | 3149899 | Seal, Infinite Switch (4) |
|
- | |||||
| 27 | 3185223 | Shield, Heat |
|
- | |||||
| 28 | 4173194 | Washer, Lock (4) |
|
- |
