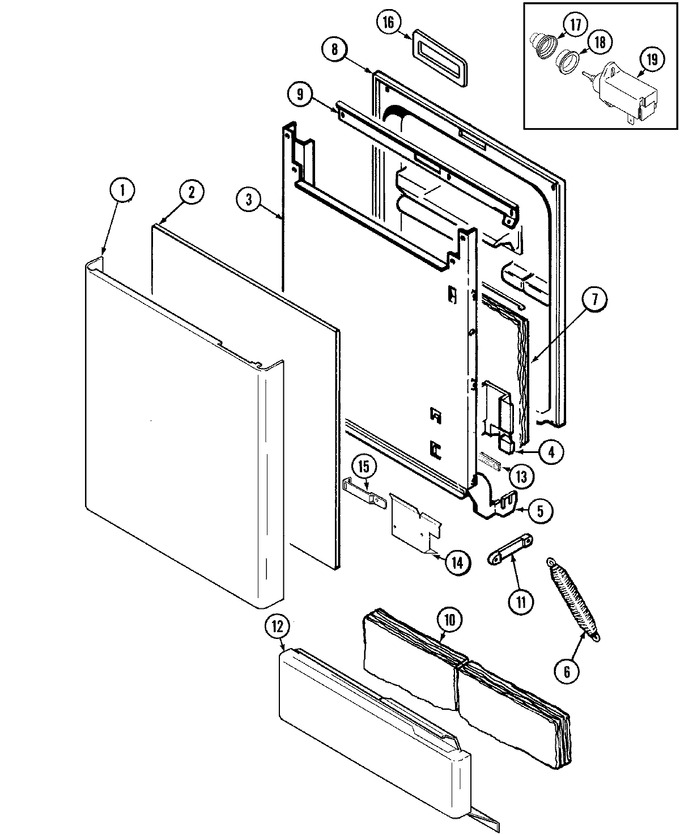

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001446		Screw, Decorator Panel (blk)	10	Appelez-nous	-
1	99001417		Panel, Decorator (blk)	10			$ 104.34
2	99001415		Filler, Front Panel	10	Appelez-nous	-
3	99001688		Ground Wire, Reinforcement	10	Appelez-nous	-
3	99002176		Door, Outer	10	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
4	WP99002362		Spacer, Foam   (Replaces: 99002362)	10			$ 5.55
4	99002188		Retainer, Wire	10	Appelez-nous	-
5	99001898		Hinge (lt)	10	Appelez-nous	-
5	99001075		Screw	10			$ 5.81
5	99001899		Hinge (rt)	10	Appelez-nous	-
6	WP912652		Spring, Door   (Replaces: 912652)	10		Immediately	$ 9.00
7	WP6-920580		Insulation, Door   (Replaces: Y912669)	10			$ 28.77
8	Y912620		Screw	10			$ 5.48
8	99002383		Door, Inner	10	Appelez-nous	-
9	Y912668		Bar, Reinforcement	10	Appelez-nous	-
10	Y912836		Insulation, Access Panel	10	Appelez-nous	-
11	WP912653		Link, Door Spring   (Replaces: 912653)	10		Immediately	$ 7.45
12	WP6-912366		Screw   (Replaces: 912366)	10			$ 7.29
12	99002063		Panel, Access (blk)	10	Appelez-nous	-
13	903233		Foam Strip, Insulation	10	Appelez-nous	-
14	WP6-912366		Screw   (Replaces: 912366)	10			$ 7.29
14	WPW10339879		Strap, Cable   (Replaces: 912266)	10			$ 7.11
14	99001414		Shield, Tub	10	Appelez-nous	-
15	99001444		Strap, Harness	10	Appelez-nous	-
15	WP489128		Screw   (Replaces: 912365)	10			$ 9.79
16	99001783		Seal, Vent Back	10	Appelez-nous	-
17	99001805		Grommet, Vent	10	Appelez-nous	-
18	99001806		Retainer, Grommet	10	Appelez-nous	-
19	99001807		Motor, Wax	10			$ 34.32
