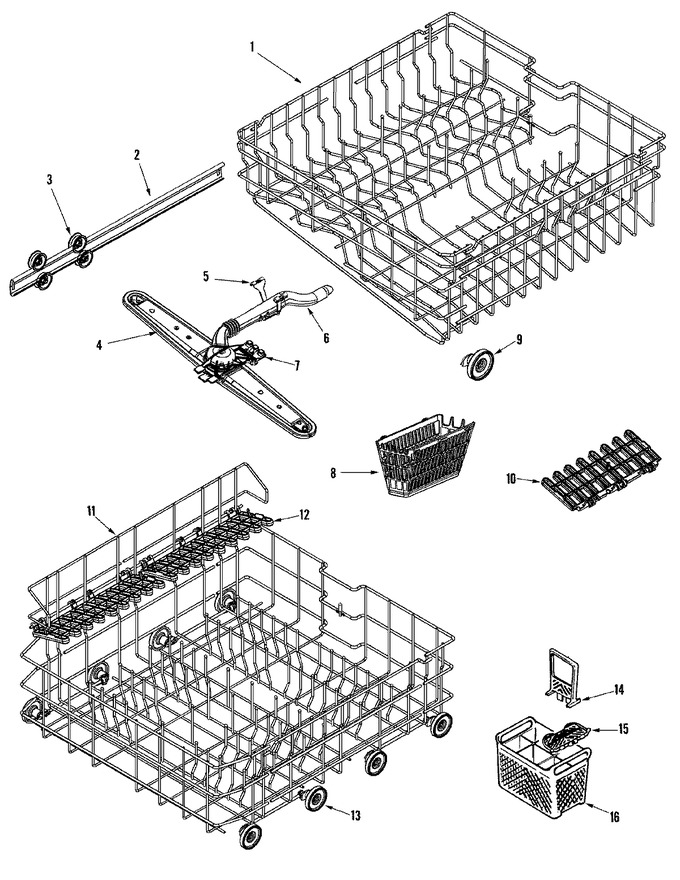

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99003218		Rack Assembly (upr)	10	Appelez-nous	-
1	99002017		Cap, Rack (light Gray)	10			$ 5.22
2	WPW10261227		Stop, Rack (gray)   (Replaces: 99002623)	10		Immediately	$ 6.93
2	99002621		Track, Rack	10			$ 56.82
3	WP99002947		Wheel, Tub   (Replaces: 99002622)	10		Immediately	$ 10.58
3	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	10			$ 6.90
3	WP99002947		Shaft, Tub Wheel   (Replaces: 99002343)	10		Immediately	$ 10.58
4	99002740		Screw, Truss Head (10-18x.75)	10			$ 6.24
4	99002624		Arm, Wash (upr)	10			$ 32.72
5	99002670		Clip, Upr Wash Manifold (back)	10	Appelez-nous	-
6	99002679		Wash Manifold Assy (upr)	10	Appelez-nous	-
7	99002669		Clip, Upr Wash Manifold (frt)	10			$ 5.84
8	99002620		Basket, Auxillary (blue)	10	Appelez-nous	-
9	WP99002781		Wheel Assembly (upr)   (Replaces: 99002781)	10			$ 11.15
10	99002671		Shelf, Cup (upr)	10			$ 21.17
11	99002017		Cap, Rack (light Gray)	10			$ 5.22
11	99002964		Rack Assembly (lwr)	10	Appelez-nous	-
12	99002672		Shelf, Cup (lwr)	10			$ 52.85
13	WP99002780		Wheel Assembly (lwr)   (Replaces: 99002780)	10		Immediately	$ 9.90
14	99002619		Handle, Silverware Basket	10			$ 16.53
15	99002618		Cover, Silverware Basket	10	Appelez-nous	-
16	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 99002617)	10		Immediately	$ 54.28
