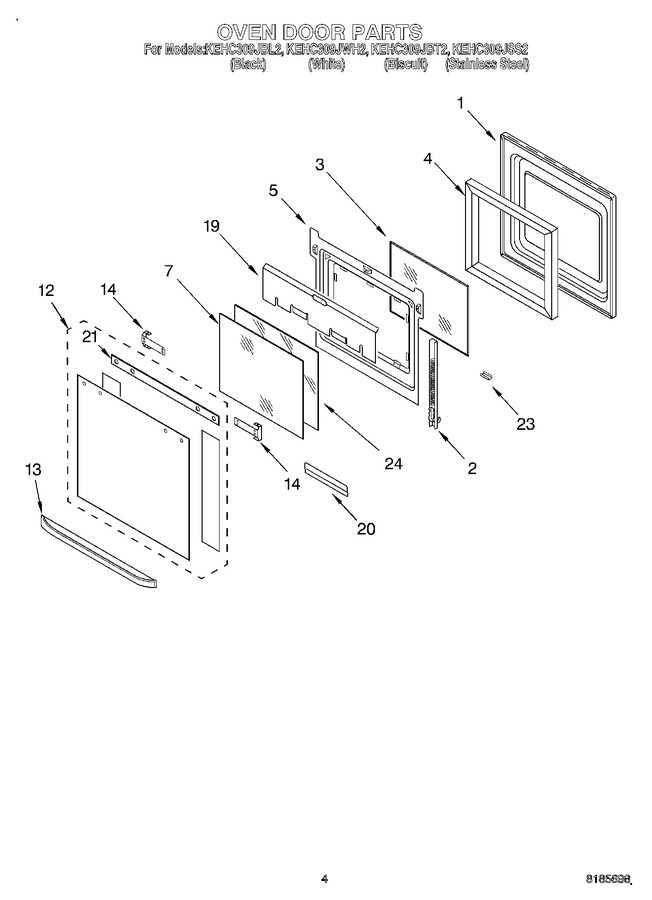

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4455526		Hinge, Door   (Replaces: 4455526)			Immediately	$ 71.55
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451671		Retainer, Glass		Appelez-nous	-
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
12	4455391		Door Glass, Assy (black)		Appelez-nous	-
12	W10401225		Door Glass, Assy (stainless Steel)   (Replaces: 4452316)				$ 289.44
12	4455395		Door Glass, Assy (biscuit)		Appelez-nous	-
12	4455390		Door Glass, Assy (white)		Appelez-nous	-
13	4452871		Door Handle (biscuit)		Appelez-nous	-
13	4452502		Door Handle (black)		Appelez-nous	-
13	4452503		Door Handle (white)		Appelez-nous	-
13	4455851		Door Handle (stainless Steel)		Appelez-nous	-
14	4452960		Bracket, Handle (left Hand)		Appelez-nous	-
14	4452959		Bracket, Handle (right Hand)		Appelez-nous	-
14	W10276642		Bracket, Handle (screw)   (Replaces: 4451040)				$ 5.49
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451668		Retainer, Glass		Appelez-nous	-
21	4452326		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
23	4452119		Retainer, Glass-clip (biscuit)		Appelez-nous	-
23	4451432		Retainer, Glass-clip (stainless Steel)		Appelez-nous	-
23	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45
