Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3161394 Hose, Sump Appelez-nous -
2 3261205 Screw Appelez-nous -
3 3161395 Cover-pump Appelez-nous -
4 3161398 Screw Appelez-nous -
5 3161409 Gasket (included In Impeller Kit No. 3161396) Appelez-nous -
6 3161404 Clamp Appelez-nous -
7 3161399 Screw Appelez-nous -
8 3161402 Lockwasher Appelez-nous -
9 3161400 Cap Appelez-nous -
10 3161405 O-ring (included In Impeller Kit No. 3161396) Appelez-nous -
11 3161401 Impeller (included In Impeller Kit No. 3161396) Appelez-nous -
12 3161406 Seal Kit (included In Impeller Kit No. 3161396) Appelez-nous -
13 3161408 Slinger Appelez-nous -
14 3161407 Body-pump Appelez-nous -
15 3261109 Clamp Appelez-nous -
16 3161403 Cap Appelez-nous -
17 3161415 Cup Washer (4) Appelez-nous -
18 3161416 Spacer Appelez-nous -
18 3161418 Spacer (non-illustrated) Appelez-nous -
18 3161417 Spacer (non-illustrated) Appelez-nous -
19 3161419 Bushing (4) Appelez-nous -
20 3161421 Motor, Main Appelez-nous -
21 3161422 Nut Appelez-nous -
22 3161423 Belt Appelez-nous -
23 3161424 Pulley, Motor Appelez-nous -
24 3161425 Pin Appelez-nous -
25 3161431 Insert Appelez-nous -
26 3161435 Bracket Appelez-nous -
27 3161434 Spring, Idler Appelez-nous -
28 3161431 Insert Appelez-nous -
29 3261220 Washer, Spring Appelez-nous -
30 3261031 Washer Appelez-nous -
31 3161433 Retainer Special Order $ 18.79

32 3161432 Shaft Appelez-nous -
33 3161431 Insert Appelez-nous -
34 3161430 Pulley, Idler Appelez-nous -
35 3261220 Washer, Spring Appelez-nous -
36 3161429 Nut Appelez-nous -
37 3161428 Pulley, Trans. Appelez-nous -
38 3161427 Screw, Set Appelez-nous -
39 3161412 Bolt Appelez-nous -
40 3161411 Washer, Neoprene Appelez-nous -
41 3161426 Plate, Support Appelez-nous -
42 3261113 Locknut Appelez-nous -
43 3161367 Bolt (3) Appelez-nous -
44 3161414 Cushion Appelez-nous -
45 3161413 Shield Appelez-nous -
46 3161451 Transm., Comp. Appelez-nous -
47 3161410 Washer, Nylatron Appelez-nous -
48 3161397 Shim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

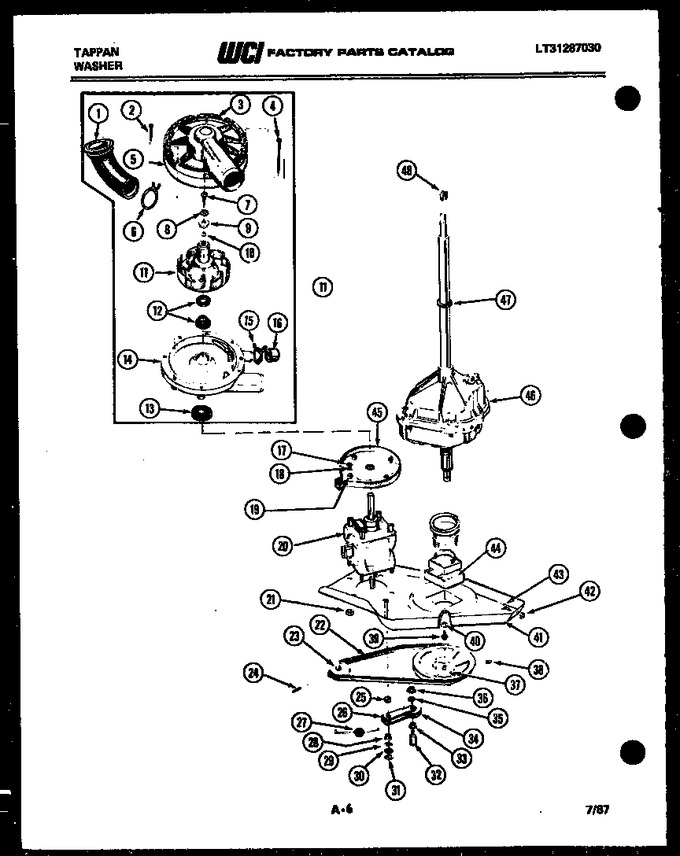

Diagram for 46-2817-23-01
