Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT4455994 Literature Parts (installation Instructions) Appelez-nous -
1 LIT4456572 Literature Parts (use & Care Guide (oven)) Appelez-nous -
1 LIT4453217 Literature Parts (use & Care Guide (microwave)) Appelez-nous -
1 LIT4452967 Literature Parts (chart, High Speed Cook) Appelez-nous -
1 LIT8302001 Literature Parts (tech Sheet (oven)) Appelez-nous -
1 LIT4449264 Literature Parts (easy Set Guide (oven)) Appelez-nous -
1 LIT4453330 Literature Parts (label, Cooking Guide) Appelez-nous -
1 LIT4453331 Literature Parts (label, Cooking Guide) Appelez-nous -
1 LIT3191638 Safer Cooking Tips Appelez-nous -
2 4455435 (trim, Side Left Hand) (biscuit) Appelez-nous -
2 WP8281236 (trim, Side (left Hand)) (screw)   (Replaces: 8281236) Special Order $ 6.80

2 4455433 (trim, Side Left Hand) (white) Appelez-nous -
2 4452083 Trim, Side Right Hand (stainless Steel) Appelez-nous -
2 4455434 Trim, Side Right Hand (biscuit) Appelez-nous -
2 4455432 Trim, Side Right Hand (white) Appelez-nous -
2 4455430 Trim, Side Right Hand (black) Special Order $ 67.89

2 4452084 (trim, Side Left Hand) (stainless Steel) Appelez-nous -
2 4455431 (trim, Side Left Hand) (black) Special Order $ 65.17

3 WP4455606 Hinge Receiver (right)   (Replaces: 4455606) In-Stock Immediately $ 107.47

3 WP4455605 Hinge Receiver (left)   (Replaces: 4455605) In-Stock Immediately $ 103.82

4 4448520 Bumper, Door Special Order $ 19.07

5 4452490 Spacer, Foam Special Order $ 34.83

6 4452336 Insulation, Bottom Vent Appelez-nous -
7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

7 4455864 Top, Chassis Special Order $ 22.85

8 4452492 Insulation-grill Appelez-nous -
9 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 12.62

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 104.97

10 4452163 Lens, Light Special Order $ 12.33

11 4449748 Screw Special Order $ 12.20

11 WP4448972 Oven Light Assy   (Replaces: 4448972) Special Order $ 98.46

12 WP4452164 Bulb, Light   (Replaces: 4452164) In-Stock Immediately $ 60.59

13 4452491 Insulation-top Appelez-nous -
14 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

14 4455612 Frame, Front Appelez-nous -
15 WP4455381 Gasket, Door   (Replaces: 4455381) Special Order $ 159.09

16 4452152 Bracket, Bottom Vent Special Order $ 30.15

19 4451477 Support, Insulation Appelez-nous -
19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

20 4451605 Cap, Spacer Special Order $ 38.55

21 4450583 Rail, Side (right Side) Appelez-nous -
21 4450584 Rail, Side (left Side) Appelez-nous -
21 WP4448444 Rail, Side (grommet)   (Replaces: 4448444) Special Order $ 6.73

21 WP4449154 Rail, Side (screw)   (Replaces: 4449154) Special Order $ 6.80

25 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

25 W10782197 Side, Chassis (r.h. & L.h.)   (Replaces: 4455641) Special Order $ 129.16

26 4452233 Back, Chassis Appelez-nous -
26 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

27 N/A Liner, Oven (not Serviceable) Appelez-nous -
29 WPW10131825 Sensor   (Replaces: 4455636) In-Stock Immediately $ 86.25

29 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

30 4449845 Bracket-support Appelez-nous -
30 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

33 4452495 Deflector, Vent Appelez-nous -
34 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 6.98

34 4451666 Vent, Center Appelez-nous -
34 WP4450038 Screw   (Replaces: 4450038) Special Order $ 6.84

37 WP9759243 Thermostat (tod) (temp.) Spst   (Replaces: 4451442) In-Stock Immediately $ 49.90

37 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

43 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

43 4455529 Base, Chassis Appelez-nous -
49 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

49 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 7.97

50 WP4451747 Cover-back   (Replaces: 4451747) Special Order $ 128.63

50 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

51 4455444 Trim, Bottom (white) Appelez-nous -
51 4455446 Trim, Bottom (biscuit) Appelez-nous -
51 4455146 Trim, Bottom (stainless Steel) Appelez-nous -
51 4455442 Trim, Bottom (black) Appelez-nous -
51 4450289 Trim, Bottom (screw) Appelez-nous -
52 N/A Following Parts Not Illustrated Insulation Appelez-nous -
52 4450364 Insulation, Back Appelez-nous -
52 4451755 Chassis, Back Appelez-nous -
52 4449315 Insulation, Wrap Special Order $ 64.81


    View Diagram in Separate Window     Print Icon   Print Part List

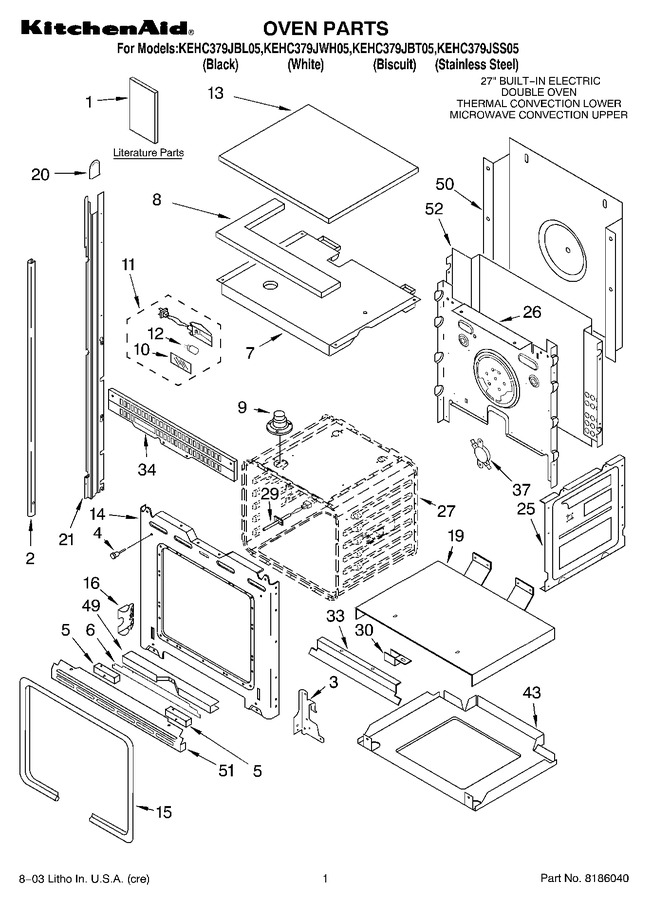

Diagram for KEHC379JBL05
