View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

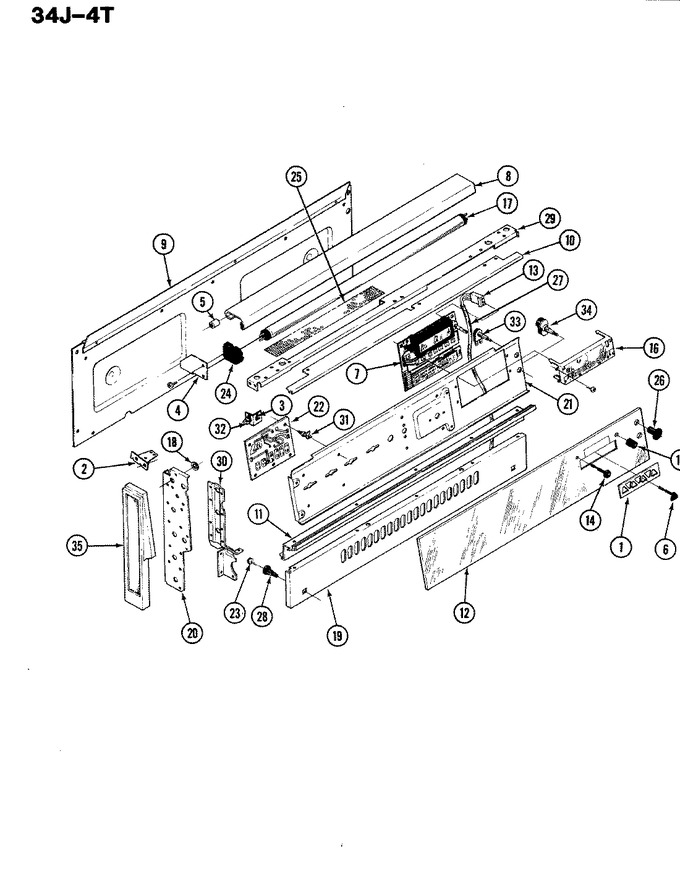

01 - Control Panel
02 - Door
03 - Gas Controls
04 - Top Assembly/body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7740P016-60 | Trim, Bezel | 17 |
|
- | ||||
| 1 | 7740P010-60 | Trim, Bezel | 01 |
|
- | ||||
| 1 | 7412P005-60 | Ballast | 01 |
|
- | ||||
| 2 | 3801F109-34 | (right) | 01 |
|
- | ||||
| 2 | 3801F002-34 | Bracket (left) | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 3 | 3801F096-45 | Bracket, H.l. Swit | 01 |
|
- | ||||
| 4 | 3801F006-51 | Bracket, Lamp | 01 |
|
- | ||||
| 5 | 1089206 | Bushing | 01 |
|
- | ||||
| 6 | 7711P335-60 | Button, Set | 01 |
|
- | ||||
| 6 | 7711P449-60 | Button, Control Set | 17 |
|
- | ||||
| 7 | 7601P181-60 | Clock, Electronic | 23 |
|
- | ||||
| 7 | 7601P155-60 | Clock | 12 |
|
- | ||||
| 7 | 7601P101-60 | Clock | 01 |
|
- | ||||
| 7 | 7601P163-60 | Clock | 17 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P064-60) | 01 |
|
Immediately | $ 6.85 | |||
| 8 | 7724P010-60 | Cover, Lamp | 01 |
|
- | ||||
| 8 | 4005F155-80 | Cover, Bottom Bkdg Wire | 01 |
|
- | ||||
| 9 | 4005F100-80 | Cover, Bkgd Wire | 01 |
|
- | ||||
| 9 | 4005F368-80 | Cover | 17 |
|
- | ||||
| 10 | 7706P166-60 | Extrusion, Glass Spt | 01 |
|
- | ||||
| 11 | 7101P177-60 | Screw, Extrusion | 01 |
|
- | ||||
| 11 | 7706P097-60 | Extrusion | 01 |
|
- | ||||
| 11 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 12 | 7910P070-60 | Glass, Bkgd | 01 |
|
- | ||||
| 13 | W10124350 | Not Required Part Or See Note | 17 |
|
- | ||||
| 13 | 5170P007-60 | Harness Oven Sensor | 01 |
|
- | ||||
| 13 | 5170P067-60 | Wire Harness, Clock | 01 |
|
- | ||||
| 14 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 14 | 7711P452-60 | Button, Clock Set | 17 |
|
- | ||||
| 15 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 17 |
|
$ 12.13 | ||||
| 15 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 16 | W10124350 | Not Required Part Or See Note | 17 |
|
- | ||||
| 16 | 7730P005-60 | Lens, Clock | 01 |
|
- | ||||
| 17 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 01 |
|
Immediately | $ 121.45 | |||
| 18 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 19 | 2620W018-00 | Panel, Bkgd Lower | 01 |
|
- | ||||
| 20 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 20 | 3605F008-80 | Plate | 01 |
|
- | ||||
| 20 | 3605F006-80 | Plate, Control Panel End (lft) | 01 |
|
- | ||||
| 21 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 21 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 21 | 3605F152-80 | Plate, Switch Mtg. | 01 |
|
- | ||||
| 21 | 3605F171-80 | Plate Switch Mtg | 17 |
|
- | ||||
| 22 | W10124350 | Not Required Part Or See Note | 17 |
|
- | ||||
| 22 | 7428P006-60 | Relay, Board Assy. | 01 |
|
- | ||||
| 23 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 24 | 7408P005-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 25 | 3604F079-80 | Shield, Ov Lamp Recpt | 01 |
|
- | ||||
| 26 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 27 | 7214P005-60 | Sleeve, Wire Protect | 01 |
|
- | ||||
| 28 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 29 | 3807F215-80 | Support, Lamp | 01 |
|
- | ||||
| 29 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 30 | WP7101P126-60 | Screw (Replaces: 7101P064-60) | 01 |
|
Immediately | $ 6.85 | |||
| 30 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 30 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 31 | W10124350 | Not Required Part Or See Note | 17 |
|
- | ||||
| 31 | 8004P020-60 | Support, Relay Board | 01 |
|
- | ||||
| 32 | 7403P179-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 33 | 7403P188-60 | Switch | 01 |
|
- | ||||
| 34 | 7403P104-60 | Switch, Oven Lamp | 01 |
|
- | ||||
| 35 | 7726P030-60 | Trim, Bkgd End (rt) | 01 |
|
- | ||||
| 35 | 7726P029-60 | Trim, End Cap (lt) | 01 |
|
- | ||||
| 35 | 7720P061-60 | Trim, Glass | 01 |
|
- | ||||
| 35 | 12001655 | Oven Sensor (Replaces: 7430P007-60) | 10 |
|
Immediately | $ 41.01 | |||
| 35 | 7728P010-60 | Trim, Overlay | 01 |
|
- | ||||
| 36 | 12001655 | Probe, Oven Sensor (Replaces: 7430P004-60) | 01 |
|
Immediately | $ 41.01 |
