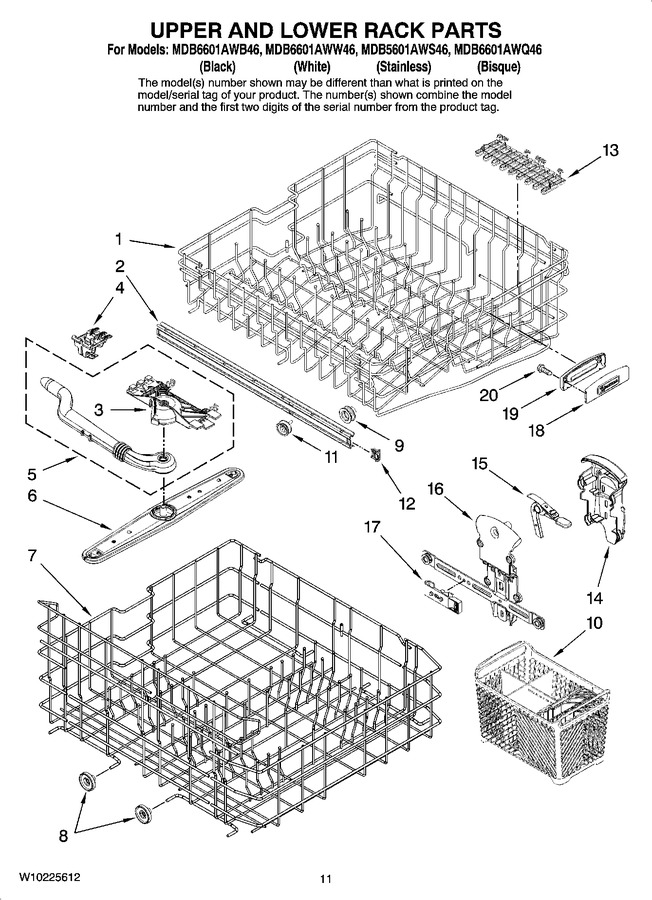

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10120538		Dishrack, Upper		Appelez-nous	-
2	99002621		Rail, Inner Slide				$ 56.82
3	99002669		Clip, Upper Wash Manifold (front)				$ 5.84
4	99002945		Clip, Upper Wash Manifold (back)				$ 21.24
5	99002679		Wash Manifold Assy, (upper)		Appelez-nous	-
6	99002624		Arm, Wash (upper)				$ 32.72
7	W10120550		Dishrack, Lower		Appelez-nous	-
8	WP99002780		Wheel Assembly Lower (8)   (Replaces: 99002780)			Immediately	$ 9.90
9	WP99002781		Wheel Assembly (4)   (Replaces: 99002781)				$ 11.15
10	WP6-918873		Basket, Silverware   (Replaces: 99002683)			Immediately	$ 54.28
11	WP99002947		Wheel, Tub (8)   (Replaces: 99002947)			Immediately	$ 10.58
12	99003476		Stop, Rail				$ 38.72
13	99002672		Shelf,cup Upper				$ 52.85
14	99003011		Cover, Rack Adj.				$ 5.75
15	99003178		Lever, Adjuster				$ 55.08
16	W10153534		Adjuster, Rack (right)				$ 63.23
16	WPW10153533		Adjuster, Rack (left)   (Replaces: W10153533)			Immediately	$ 137.39
17	99003020		Stabilizer, Rack Adjuster				$ 37.77
18	99003459		Handle, Front		Appelez-nous	-
19	99003460		Hanlde, Back		Appelez-nous	-
20	99003010		Screw		Appelez-nous	-
