01 - Control Panel

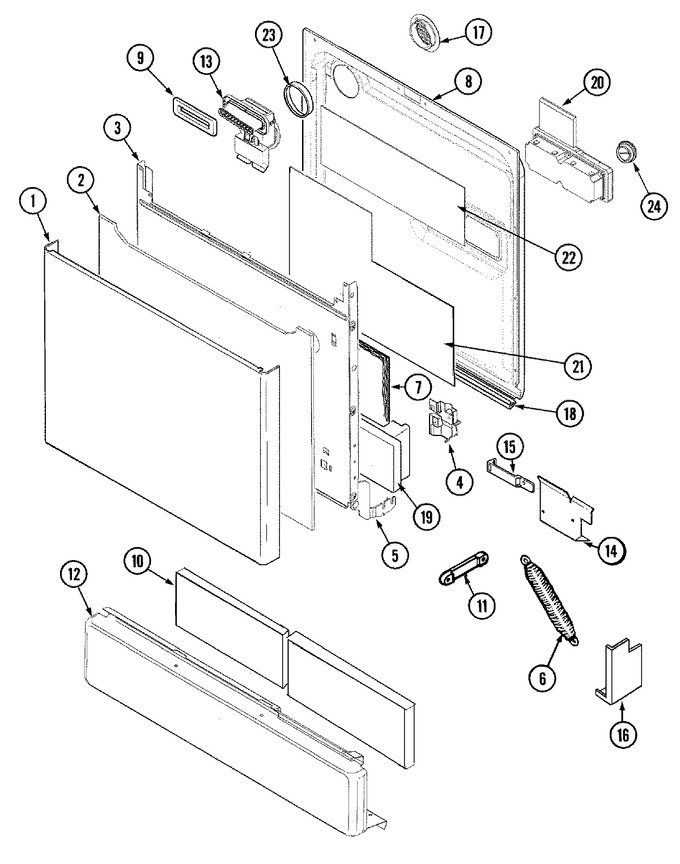

02 - Door
03 - Inner Tub
04 - Outer Tub
05 - Pump & Motor
06 - Track & Rack Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99001417 | Panel, Decorator (blk) | 10 |
|
$ 104.34 | ||||
| 1 | 99001446 | Screw, Decorator Panel (blk) | 10 |
|
- | ||||
| 2 | 99001415 | Filler, Front Panel | 10 |
|
- | ||||
| 3 | 99002176 | Door, Outer | 10 |
|
- | ||||
| 4 | 99002188 | Retainer, Wire | 10 |
|
- | ||||
| 5 | 99001075 | Screw | 10 |
|
$ 5.81 | ||||
| 5 | 99001898 | Hinge (lt) | 10 |
|
- | ||||
| 5 | 99001899 | Hinge (rt) | 10 |
|
- | ||||
| 6 | WP912652 | Spring, Door (Replaces: 912652) | 10 |
|
Immediately | $ 9.00 | |||
| 7 | 99002410 | Insulation, Door | 10 |
|
- | ||||
| 8 | 99002157 | Door, Inner | 10 |
|
- | ||||
| 8 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 9 | 99002185 | Seal, Vent | 10 |
|
- | ||||
| 10 | 99002412 | Insulation, Access Panel | 10 |
|
- | ||||
| 11 | WP912653 | Link, Door Spring (Replaces: 912653) | 10 |
|
Immediately | $ 7.45 | |||
| 12 | 99002063 | Panel, Access (blk) | 10 |
|
- | ||||
| 12 | 99001205 | Seal, Access Panel | 10 |
|
- | ||||
| 12 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 12 | 99001990 | Damper, Access Panel | 10 |
|
- | ||||
| 13 | 99002177 | Vent Assembly | 10 |
|
- | ||||
| 14 | 99001414 | Shield, Tub | 10 |
|
- | ||||
| 15 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 15 | 99001444 | Strap, Harness | 10 |
|
- | ||||
| 16 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 16 | Y912809 | Shield, Access Panel (rt) | 10 |
|
- | ||||
| 16 | Y912810 | Shield, Access Panel (lt) | 10 |
|
- | ||||
| 17 | 99002178 | Bezel, Door Vent | 10 |
|
- | ||||
| 18 | 99002158 | Seal, Door (bottom) | 10 |
|
- | ||||
| 19 | 99002174 | Barrier, Condensation | 10 |
|
- | ||||
| 20 | 99002180 | Detergent/rinse Aid Assembly | 10 |
|
- | ||||
| 20 | 99002270 | Seal, Base | 10 |
|
$ 59.76 | ||||
| 20 | 99002465 | Bracket, Dispenser | 10 |
|
- | ||||
| 21 | 99002154 | Damper, Door (ctr) | 10 |
|
- | ||||
| 22 | 99002155 | Damper, Door (top) | 10 |
|
- | ||||
| 23 | 99002186 | Seal, Door Vent | 10 |
|
$ 7.89 | ||||
| 24 | 99002269 | Knob, Rinse Aid | 10 |
|
- |
