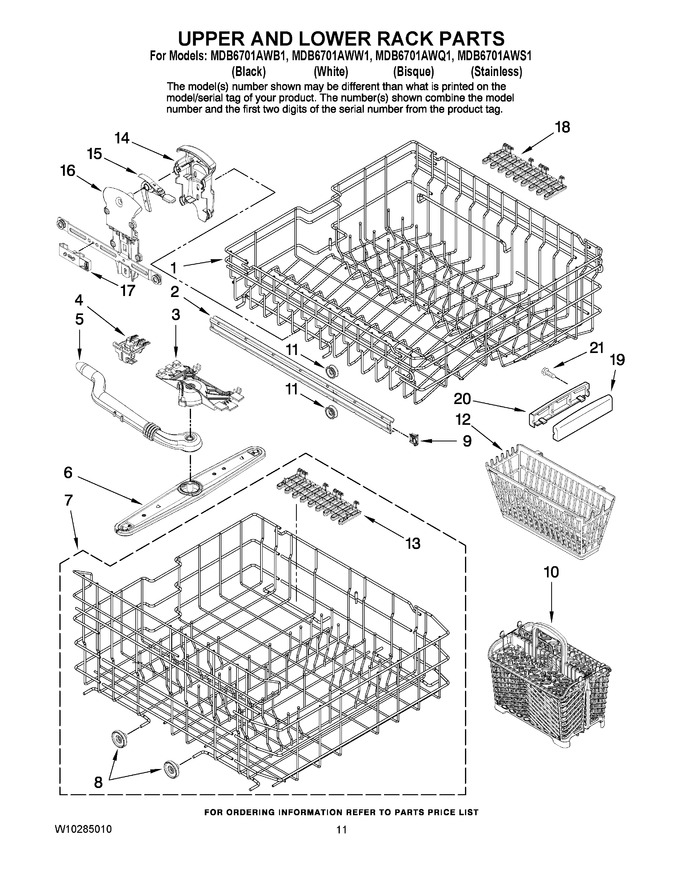

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203886		Dishrack, Upper		Appelez-nous	-
2	99002621		Rail, Inner Slide				$ 56.82
3	99003072		Clip, Upper Wash Manifold (front)				$ 5.25
4	99003071		Clip, Upper Wash Manifold (back)				$ 19.68
5	99003081		Wash Manifold (upper)				$ 82.70
6	99002911		Arm, Wash (upper)		Appelez-nous	-
7	W10203871		Dishrack, Lower		Appelez-nous	-
8	WP99003149		Wheel Assembly (8) Lower   (Replaces: 99003149)			Immediately	$ 11.48
9	W10169390		Stop, Rail		Appelez-nous	-
10	WP6-918873		Basket, Silverware   (Replaces: 99003268)			Immediately	$ 54.28
11	WP99002947		Wheel, Tub (8)   (Replaces: 99002947)			Immediately	$ 10.58
12	W10171451		Basket, Utensil				$ 57.12
13	6-918867		Shelf, Cup		Appelez-nous	-
14	99003191		Cover, Rack Adj.				$ 39.36
15	99003276		Lever, Rack Adj.		Appelez-nous	-
16	W10169393		Rack, Adjuster (right)		Appelez-nous	-
16	W10169392		Rack, Adjuster (left)		Appelez-nous	-
17	99003193		Stablizer,rack				$ 6.22
18	99003252		Cup, Shelf		Appelez-nous	-
19	W10162608		Handle, Front		Appelez-nous	-
20	W10162610		Handle, Back		Appelez-nous	-
21	99003010		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
