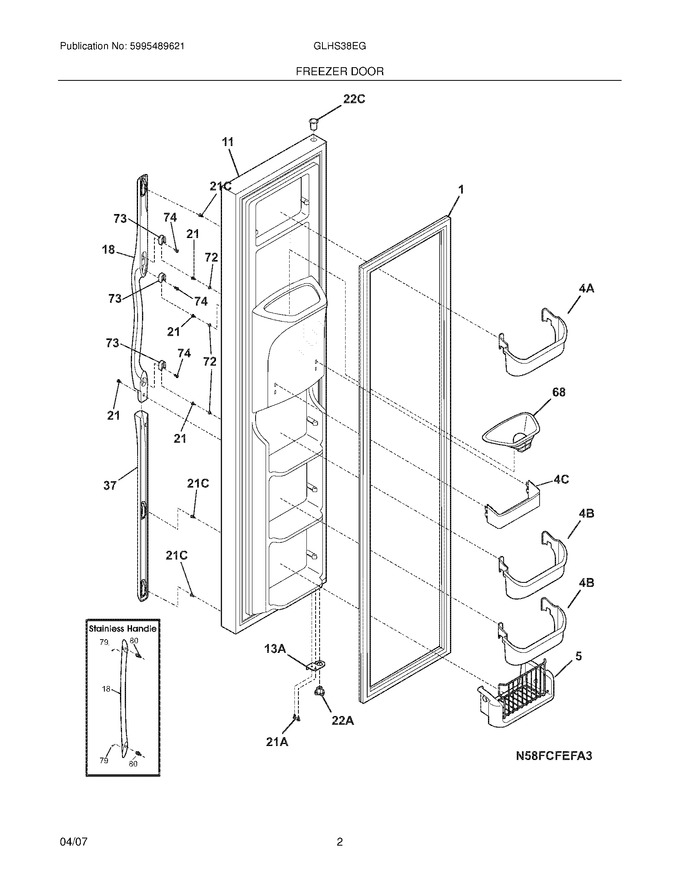

03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241545004		Bin-tilt Out,tilt-out				$ 102.63
11	241526792		Door-frzr,smooth Black ,complete Assy				$ 365.82
18	240536810		Handle-door,black				$ 129.00
68	241525101		Chute-ice				$ 82.25
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240581906		Door Stop,black ,frzr				$ 73.00
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22A	242000502		Bearing-hinge(frz),black ,closer   (Replaces: 240328204)				$ 7.18
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
4A	240367301		Bin-door,frzr-upper			Immediately	$ 44.68
4B	240359001		Bin-door			Immediately	$ 68.11
4C	240358401		Bin-door,frzr-dispenser				$ 56.37
F1	241786016		Gasket-frzr Door,black ,magnetic   (Replaces: 241674808)				$ 93.12
NI	240552102		Harness-wiring,door				$ 77.60
NI	241806601		Connector-water,straight			Immediately	$ 70.56
NI	5303918256		Dispenser Heater Kit				$ 474.16
