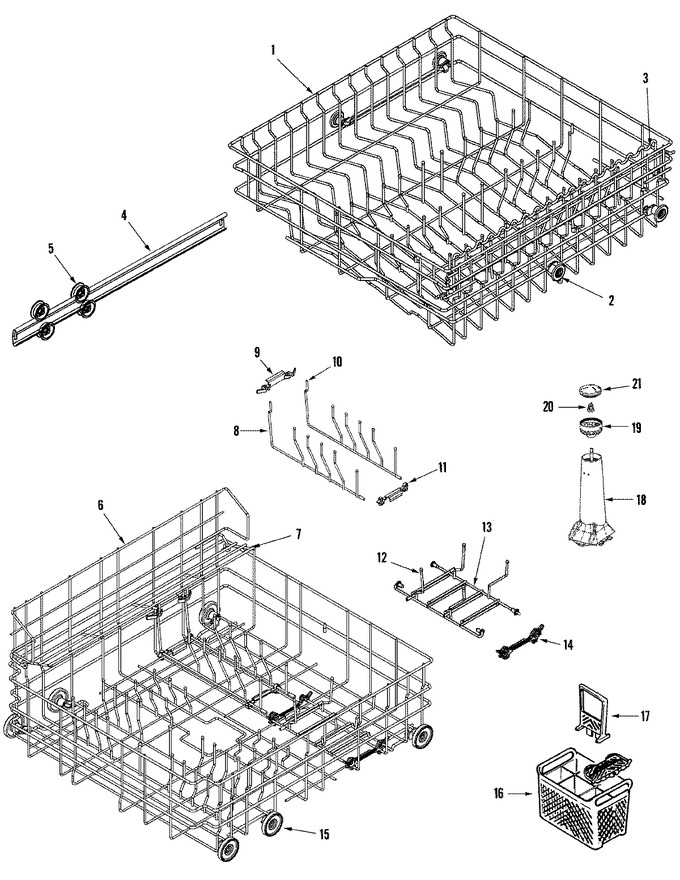

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001482		Rack Assembly (upr)	10	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	10		Immediately	$ 9.65
3	99001429		Shelf, Rack (upr)	10			$ 72.77
4	Y912545		Track, Rack	10			$ 40.33
4	WP99002135		Stop, Rack   (Replaces: 912546)	10			$ 7.92
5	WP99002947		Shaft, Tub Wheel   (Replaces: 912549)	10		Immediately	$ 10.58
5	912548		Wheel, Tub	10	Appelez-nous	-
5	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	10			$ 6.90
6	99001455		Rack Assembly (lwr)	10	Appelez-nous	-
7	903436		Shelf, Rack (lwr)	10			$ 19.66
8	Y912710		Sleeve, Folding Tines	10	Appelez-nous	-
8	99001434		Tine, Fold-away (frt)	10	Appelez-nous	-
9	99001746		Latch, Pivoting Tine	10			$ 6.98
10	Y912710		Sleeve, Folding Tines	10	Appelez-nous	-
10	99001435		Tine, Fold-away (rear)	10	Appelez-nous	-
11	WP99001436		Clip, Fold Away Tine   (Replaces: 99001436)	10			$ 7.47
12	99001432		Tine, Bowl (frt)	10	Appelez-nous	-
13	WP99002138		Tine, Bowl (rear)   (Replaces: 99001433)	10			$ 61.64
14	WPY912709		Clip, Adjustable Peg   (Replaces: Y912709)	10		Immediately	$ 7.07
15	WP99002780		Wheel Assembly (lwr)   (Replaces: 903095)	10		Immediately	$ 9.90
16	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 99001751)	10		Immediately	$ 54.28
17	Y912708		Handle, Silverware Basket	10	Appelez-nous	-
18	99001533		Tower, Spray (w/shaft-gray)	10	Appelez-nous	-
19	99001442		Diverter, Spray (gray)	10			$ 5.84
20	99001426		Nut, Discharge Housing	10			$ 5.84
21	99001443		Cap, Spray Diverter (gray)	10			$ 5.51
22	99002016		Cap, Rack (wht)	10	Appelez-nous	-
22	99002017		Cap, Rack (light Gray)	10			$ 5.22
