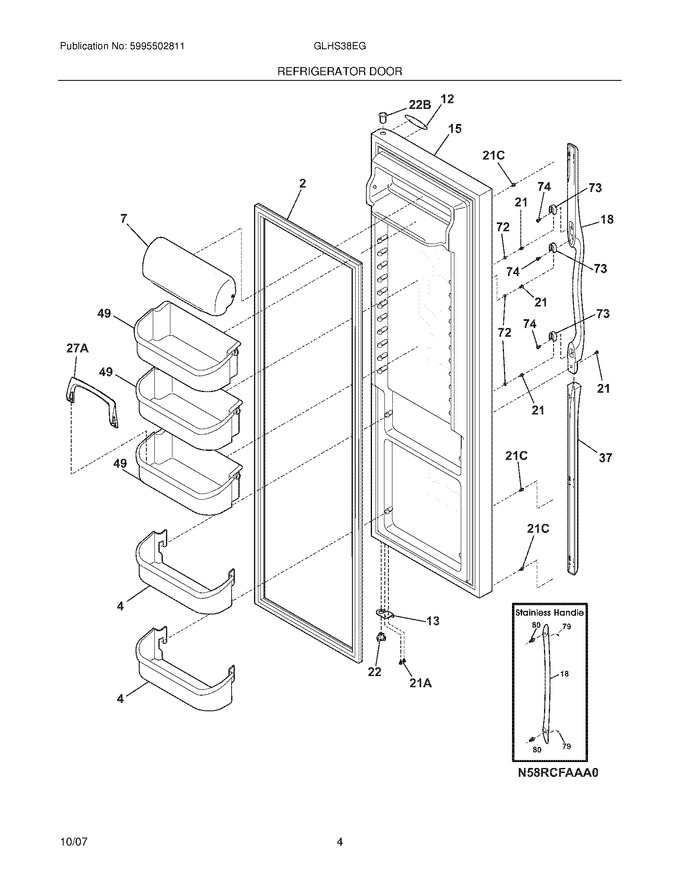

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door,white ,magnetic   (Replaces: 241786003)			Immediately	$ 94.66
4	240363702		Bin-door,2-liter			Immediately	$ 76.40
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
12	240449709		Nameplate,bisque		Appelez-nous	-
13	240581903		Door Stop,bisque ,ref				$ 29.87
15	240451917		Door-refr,bisque ,complete Assy		Appelez-nous	-
18	241711703		Handle-refr Door,bisque		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	241711603		Trim-door Handle,bisque ,bottom				$ 16.75
49	240324502		Bin-door,gallon   (Replaces: 240430310)			Immediately	$ 102.61
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
27A	240396102		Retainer,tall Bottle				$ 19.13

    View Diagram in Separate Window       Print Part List
