SELECT A DIAGRAM

Diagram for 01 - Oven Parts
01 - Oven Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Oven Door Parts
03 - Oven Door Parts

Diagram for 04 - Latch Parts
04 - Latch Parts

Diagram for 05 - Internal Oven Parts
05 - Internal Oven Parts

Diagram for 06 - Cabinet And Stirrer Parts
06 - Cabinet And Stirrer Parts

Diagram for 07 - Microwave Compartment Parts
07 - Microwave Compartment Parts

Diagram for 08 - Top Venting Parts
08 - Top Venting Parts

Diagram for 09 - Microwave Door Parts, Optional Parts (not Included)
09 - Microwave Door Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4452604 Panel, Control (black) Appelez-nous -
1 4452605 Panel, Control (white) Appelez-nous -
1 4452974 Panel, Control (biscuit) Appelez-nous -
1 4451791 Panel, Control (s.steel) Appelez-nous -
2 8302346 Assy, Control Special Order $ 530.26

2 WP4449745 Screw   (Replaces: 4449745) Special Order $ 6.74

3 8302681 Assy, Membrane (black) Appelez-nous -
3 8302660 Assy, Membrane (screw) Appelez-nous -
3 8302674 Assy, Membrane (white) Appelez-nous -
3 8302672 Assy, Membrane (biscuit) Appelez-nous -
3 8302688 Assy, Membrane (s.steel) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

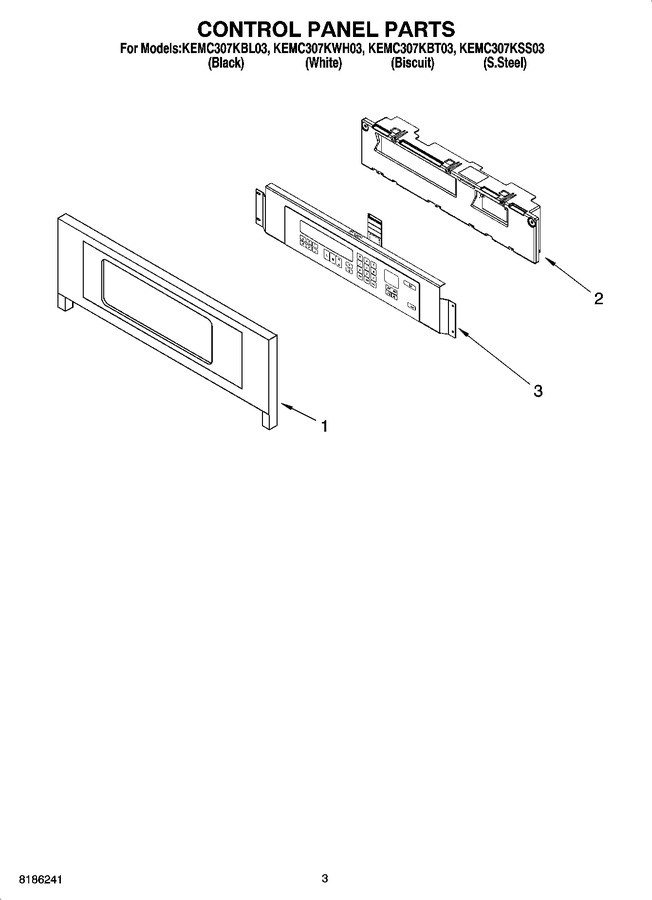

Diagram for KEMC307KWH03
