View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Lower Rack Assembly
04 - Pump & Motor
05 - Rinse Aid & Soap Dispenser
06 - Tub
07 - Upper Rack & Track Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

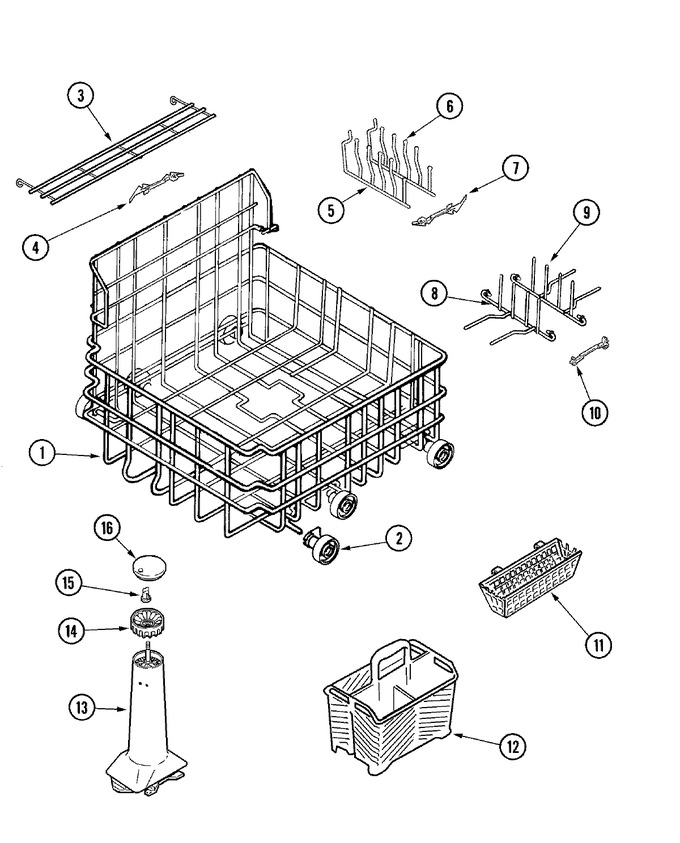

| 1 | 99002387 | Rack Assembly (lwr) | 10 |
|
- | ||||
| 2 | WP99002780 | Wheel Assembly (lwr) (Replaces: 903095) | 10 |
|
Immediately | $ 9.90 | |||
| 3 | 99002139 | Shelf, Rack (lwr) | 10 |
|
- | ||||
| 4 | 99001746 | Latch, Pivoting Tine | 10 |
|
$ 6.98 | ||||
| 5 | 99002126 | Tine, Fold-away (frt) | 10 |
|
$ 26.87 | ||||
| 6 | 99002127 | Tine, Fold-away (rear) | 10 |
|
$ 26.41 | ||||
| 7 | WP99001436 | Clip, Fold Away Tine (Replaces: 99001436) | 10 |
|
$ 7.47 | ||||
| 8 | Y912710 | Sleeve, Folding Tines | 10 |
|
- | ||||
| 8 | 99002137 | Tine, Bowl (frt) | 10 |
|
$ 26.65 | ||||
| 9 | Y912710 | Sleeve, Folding Tines | 10 |
|
- | ||||
| 9 | WP99002138 | Tine, Bowl (rear) (Replaces: 99002138) | 10 |
|
$ 61.64 | ||||
| 10 | WPY912709 | Clip, Adjustable Peg (Replaces: Y912709) | 10 |
|
Immediately | $ 7.07 | |||
| 11 | 99002075 | Basket, Auxillary | 10 |
|
- | ||||
| 12 | 99002031 | Cover, Basket | 10 |
|
- | ||||
| 12 | WP6-918873 | Basket/half, Silverware (Replaces: 99002029) | 10 |
|
Immediately | $ 54.28 | |||
| 12 | WP6-918873 | Basket, Split & Fit (w/cover) (Replaces: 99002028) | 10 |
|
Immediately | $ 54.28 | |||
| 13 | 99001533 | Tower, Spray (w/shaft-gray) | 10 |
|
- | ||||
| 14 | 99001442 | Diverter, Spray (gray) | 10 |
|
$ 5.84 | ||||
| 15 | 99001426 | Nut, Discharge Housing | 10 |
|
$ 5.84 | ||||
| 16 | 99001443 | Cap, Spray Diverter (gray) | 10 |
|
$ 5.51 |
